Samsung Hanwha XNP-C8303RW 6MP 30x AI PTZ Camera with built-in wiper

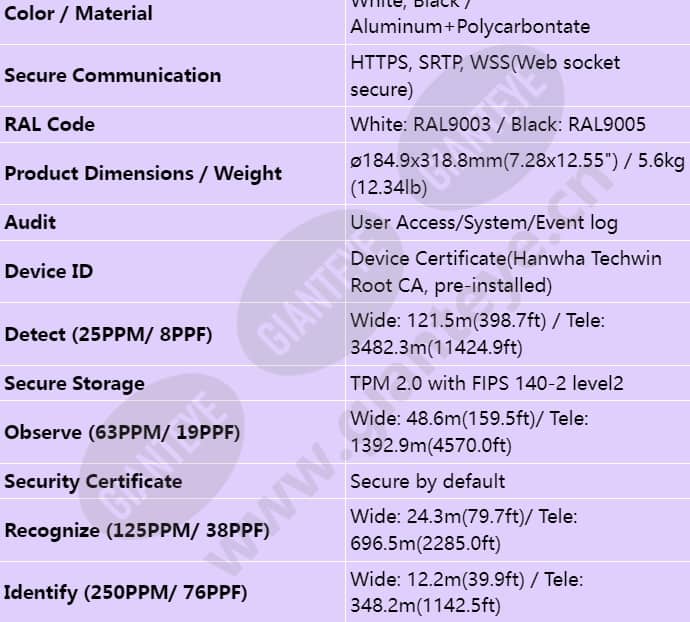

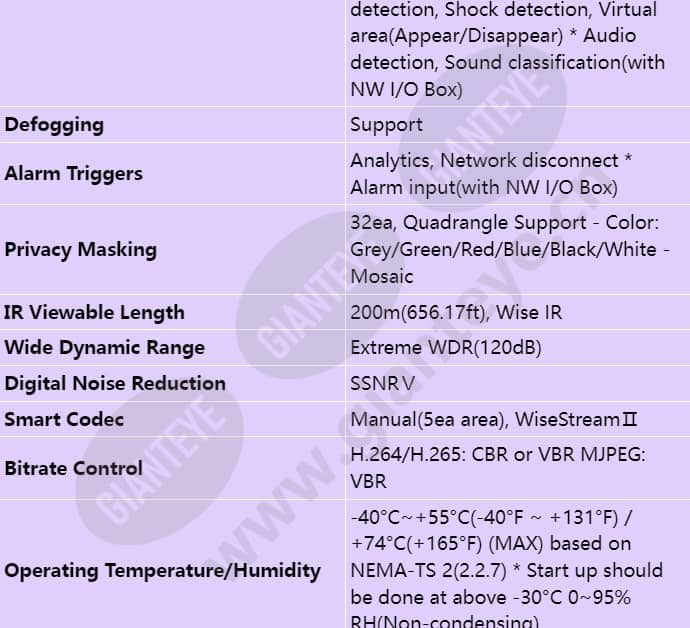

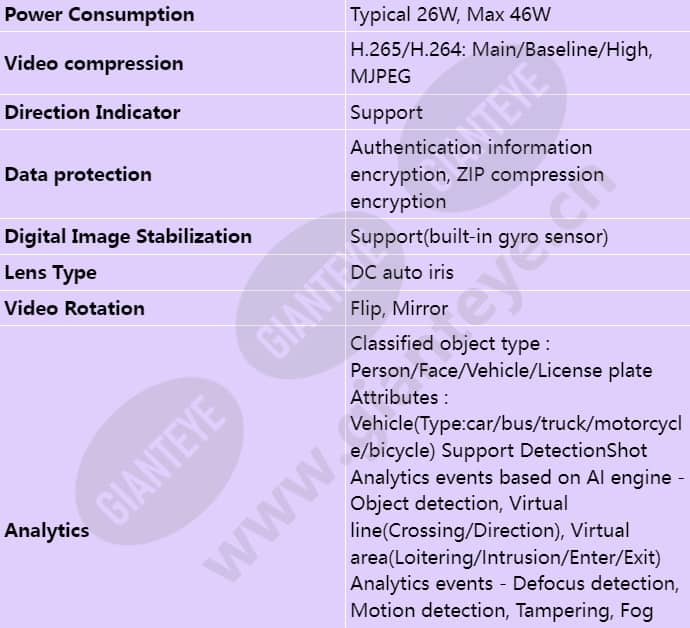

/ +74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C 0~95% RH(Non-condensing) Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / 0~90% RH Certification IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9) Input Voltage HPoE(IEEE802.3bt, Class6, Type3, Injector included) Power Consumption Typical 26W, Max 46W Color / Material White, Black / Aluminum+Polycarbontate RAL Code White: RAL9003 / Black: RAL9005 Product Dimensions / Weight ø184.9x318.8mm(7.28x12.55") / 5.6kg (12.34lb) Detect (25PPM/ 8PPF) Wide: 121.5m(398.7ft) / Tele: 3482.3m(11424.9ft) Observe (63PPM/ 19PPF) Wide: 48.6m(159.5ft)/ Tele: 1392.9m(4570.0ft) Recognize (125PPM/ 38PPF) Wide: 24.3m(79.7ft)/ Tele: 696.5m(2285.0ft) Identify (250PPM/ 76PPF) Wide: 12.2m(39.9ft) / Tele: 348.2m(1142.5ft)
