Huawei IPC6091-P360 360˚ Panoramic Integrated Smart PTZ Dome Camera

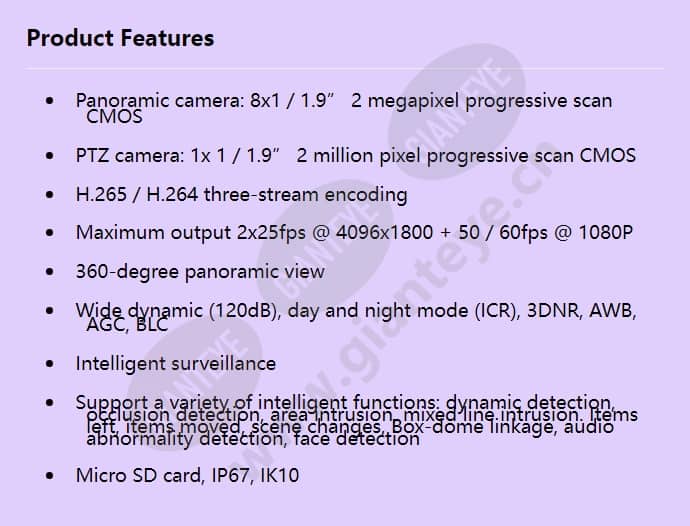

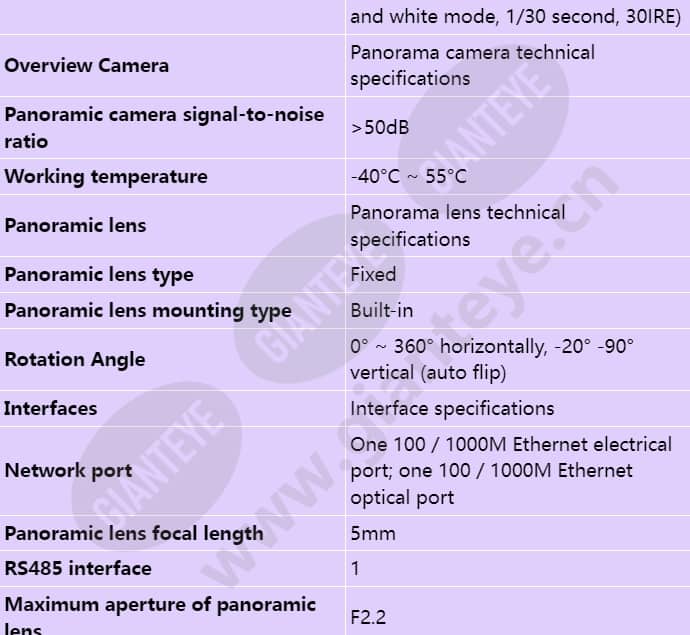

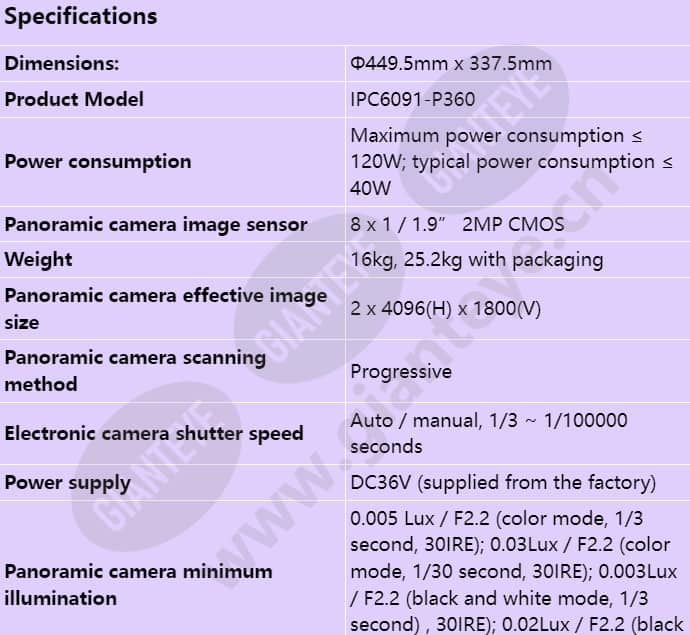

Panoramic camera: 8x1 / 1.9” 2 megapixel progressive scan CMOS PTZ camera: 1x 1 / 1.9” 2 million pixel progressive scan CMOS H.265 / H.264 three-stream encoding Maximum output 2x25fps @ 4096x1800 + 50 / 60fps @ 1080P 360-degree panoramic view Wide dynamic (120dB), day and night mode (ICR), 3DNR, AWB, AGC, BLC Intelligent surveillance Support a variety of intelligent functions: dynamic detection, occlusion detection, area intrusion, mixed line intrusion. Items left, items moved, scene changes, Box-dome linkage, audio abnormality detection, face detection Micro SD card, IP67, IK10 Product Model IPC6091-P360 Panoramic camera Panorama camera technical specifications Panoramic camera image sensor 8 x 1 / 1.9” 2MP CMOS Panoramic camera effective image size 2 x 4096(H) x 1800(V) Panoramic camera scanning method Progressive Electronic camera shutter speed Auto / manual, 1/3 ~ 1/100000 seconds Panoramic camera minimum illumination 0.005 Lux / F2.2 (color mode, 1/3 second, 30IRE); 0.03Lux / F2.2 (color mode, 1/30 second, 30IRE); 0.003Lux / F2.2 (black and white mode, 1/3 second) , 30IRE); 0.02Lux / F2.2 (black and white mode, 1/30 second, 30IRE) Panoramic camera signal-to-noise ratio >50dB Panoramic lens Panorama lens technical specifications Panoramic lens type Fixed Panoramic lens mounting type Built-in Panoramic lens focal length 5mm Maximum aperture of panoramic lens F2.2 Panoramic lens field of view Horizontal: 360˚, Vertical: 80˚ DORI distance of panoramic lens Detection (D): 53m; Observation (O): 21m; Identification (R): 10m; Identification (I): 5m PTZ camera PTZ camera technical specifications PTZ camera image sensor 1 / 1.9” 2MP CMOS PTZ camera effective image size 1920(H) x 1080(V) PTZ camera RAM / ROM 1024MB / 128MB PTZ camera scanning method Progressive Electronic shutter speed of PTZ camera Auto / manual, 1 ~ 1/30000 seconds Minimum illumination of PTZ camera 0.002 Lux / F1.5 (color mode, 1/3 second, 30IRE) 0.01Lux / F1.5 (color mode, 1/30 second, 30IRE) 0.001Lux / F1.5 (black and white mode, 1/3 second, 30IRE) ) 0.008Lux / F1.5 (black and white mode, 1/30 second, 30IRE) Signal to noise ratio of PTZ camera >50dB PTZ lens PTZ lens technical specifications PTZ lens type Motorized / Auto Iris (HALL) PTZ lens mount type Built-in PTZ lens focal length 5.5mm~206mm Maximum aperture of PTZ lens F1.5 PTZ lens field of view Level: 65.8˚ ~ 2.0˚ PTZ lens optical zoom 37x PTZ lens focus control Electric PTZ lens DORI distance Lens / W / T; Detection (D) / 70m / 2080m; Observation (O) / 28m / 832m; Identification (R) / 14m / 416m; Identification (I) / 7m / 208m PTZ PTZ Technical Specifications Rotation angle 0° ~ 360° horizontally, -20° -90° vertical (auto flip) Horizontal keying speed 0.1° -300° / s speed can be set, horizontal preset speed: 600° / s Preset 300 Other support functions Automatic cruise, automatic patrol, automatic line scan, power-off memory, idle motion, timing task, three-dimensional positioning interface Interface specifications Network Interface One 100 / 1000M Ethernet electrical port; one 100 / 1000M Ethernet optical port RS485 interface 1 Storage function Support Micro SD card storage, maximum capacity 128GB, NAS, FTP Audio interface 2 RCA audio inputs; 1 RCA audio output Alarm interface Alarm input * 7, terminal is bare wire; alarm output * 2, terminal is bare wire Features Functional specifications Through the fog Panorama: Does not support fog; PTZ: Supports automatic, manual, shutter priority, aperture priority modes Day and night mode Auto ICR / color / black and white Glare suppression Support, parameter range adjustable 1-100 OSD information overlay Support Access standard ONVIF; GB/T28181; CGI; PSIA General specifications Other general specifications Power supply DC36V (supplied from the factory) Power consumption Maximum power consumption ≤ 120W; typical power consumption ≤ 40W Operating temperature -40°C ~ 55°C Operating humidity ≤95% Weight 16kg, 25.2kg with packaging Dimensions Φ449.5mm x 337.5mm Other Heater, fan defogging
