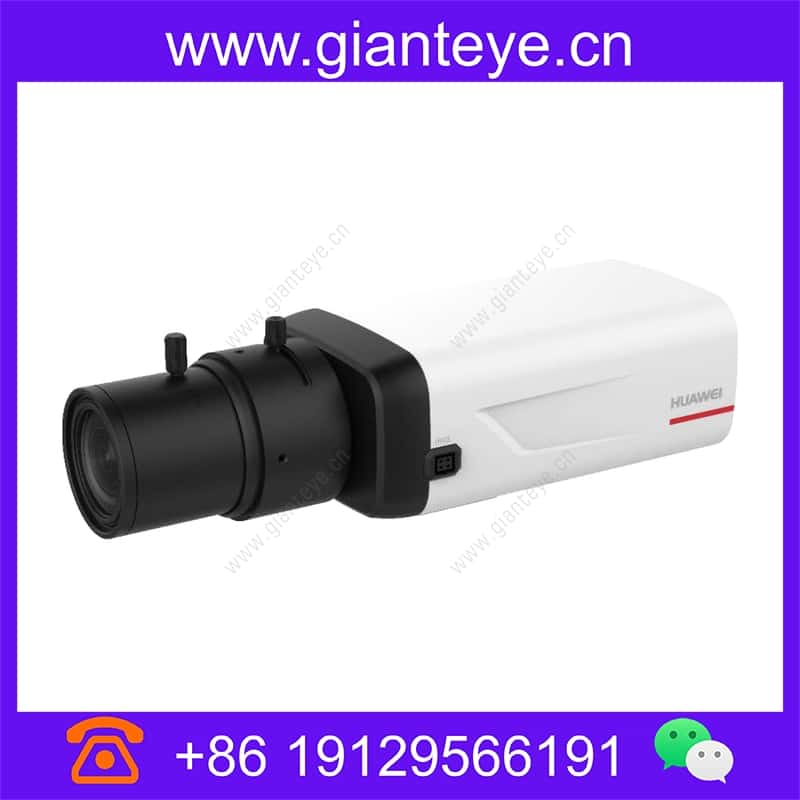

Huawei IPC6125-WDL-D 2MP Low Illumination Wide Dynamic Box IP Camera 02350KDX

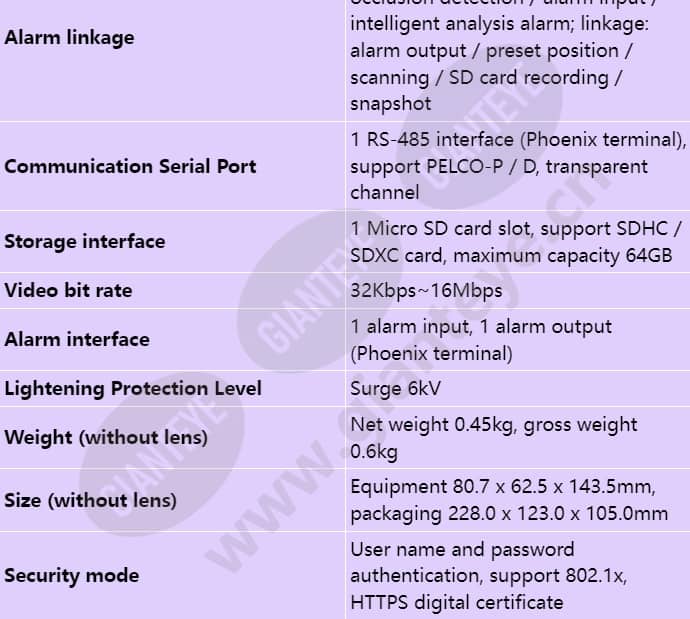

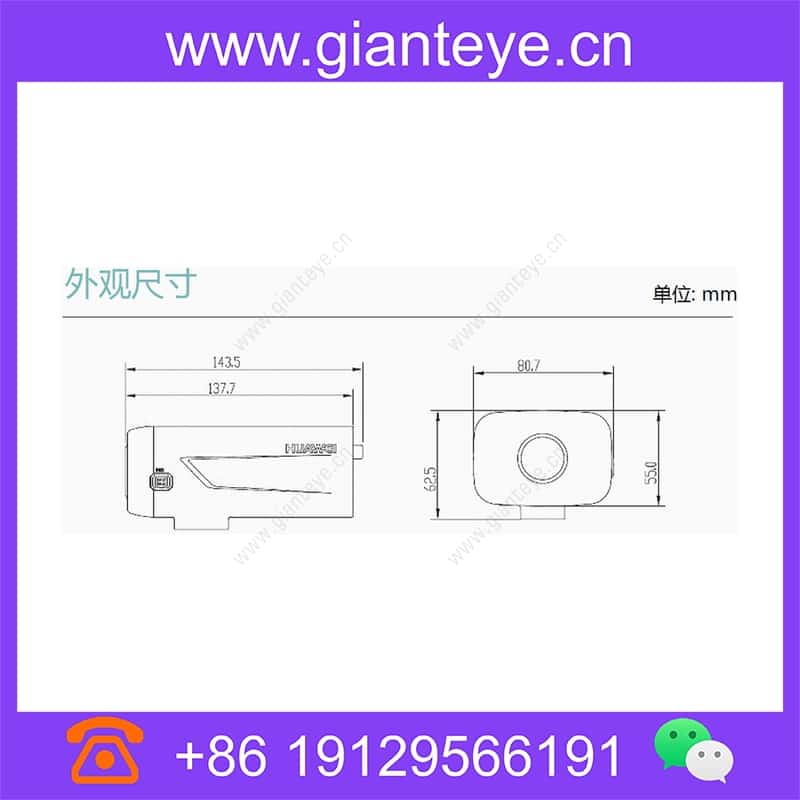

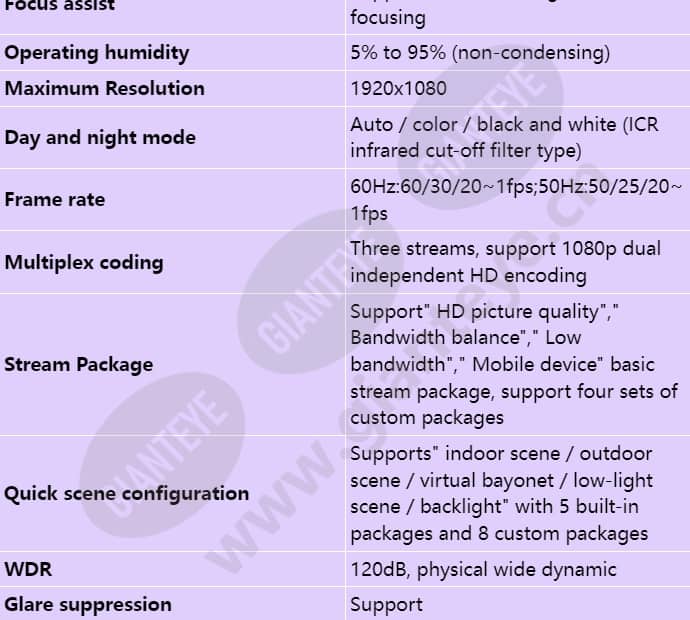

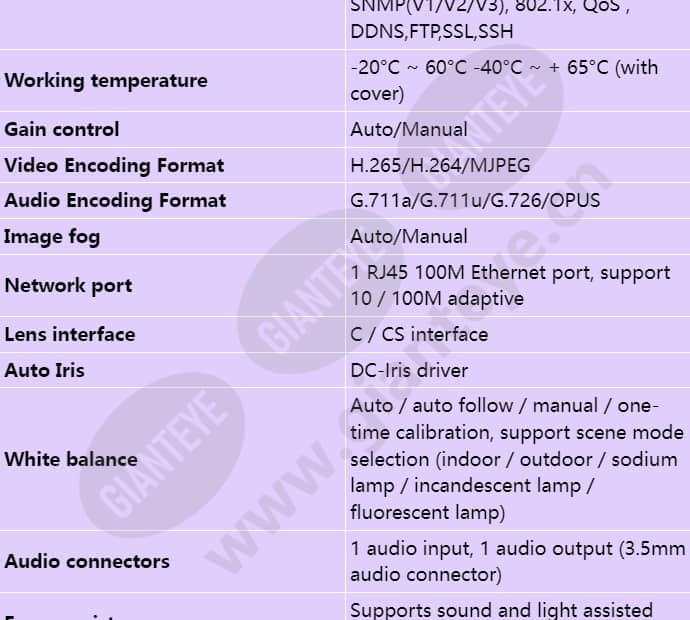

1 RS-485 interface (Phoenix terminal), support PELCO-P / D, transparent channel Alarm interface 1 alarm input, 1 alarm output (Phoenix terminal) Video interface 1 CVBS composite analog video signal (RCA interface) Audio interface 1 audio input, 1 audio output (3.5mm audio connector) Storage interface 1 Micro SD card slot, support SDHC / SDXC card, maximum capacity 64GB Power supply DC12V ±25% (non-polar), AC24V ±25% Power consumption Maximum power consumption of 4.2W; typical power consumption of 3.5W Operating temperature -20°C ~ 60°C -40°C ~ + 65°C (with cover) Operating humidity 5% to 95% (non-condensing) Lightening protectionlevel Surge 6kV Weight (without lens) Net weight 0.45kg, gross weight 0.6kg Size (without lens) Equipment 80.7 x 62.5 x 143.5mm, packaging 228.0 x 123.0 x 105.0mm
