Huawei IPC6126-WDL-E 2MP Wide Dynamic Starlight Box IP Camera

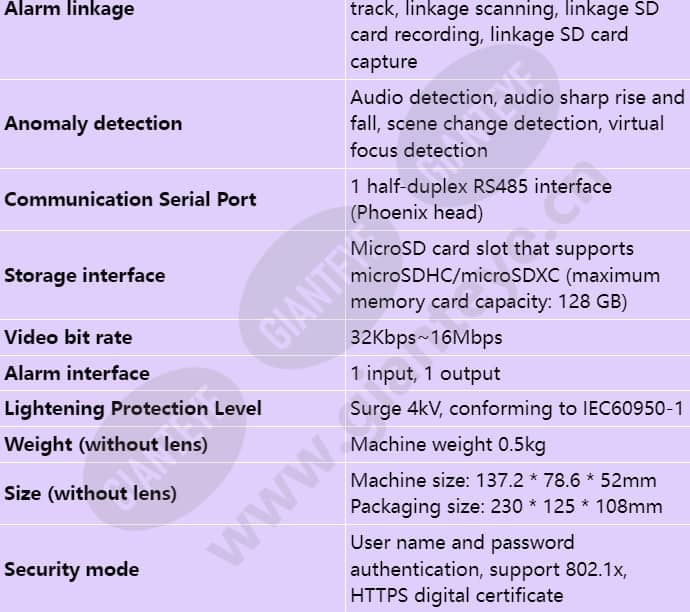

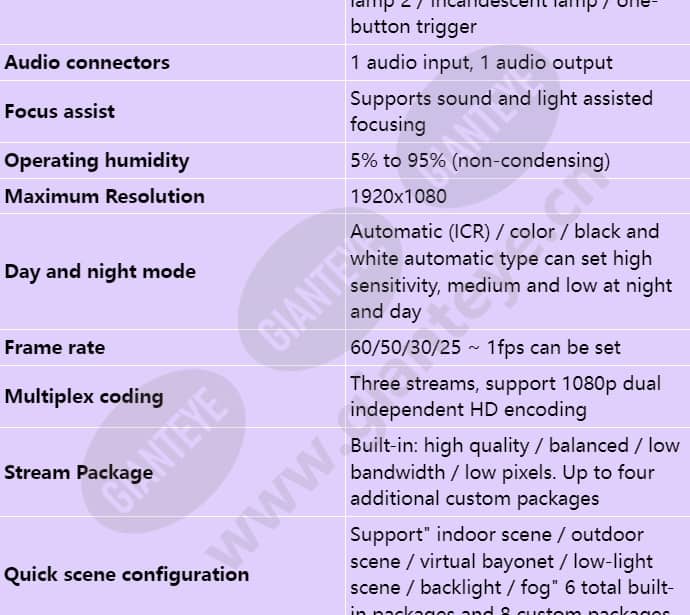

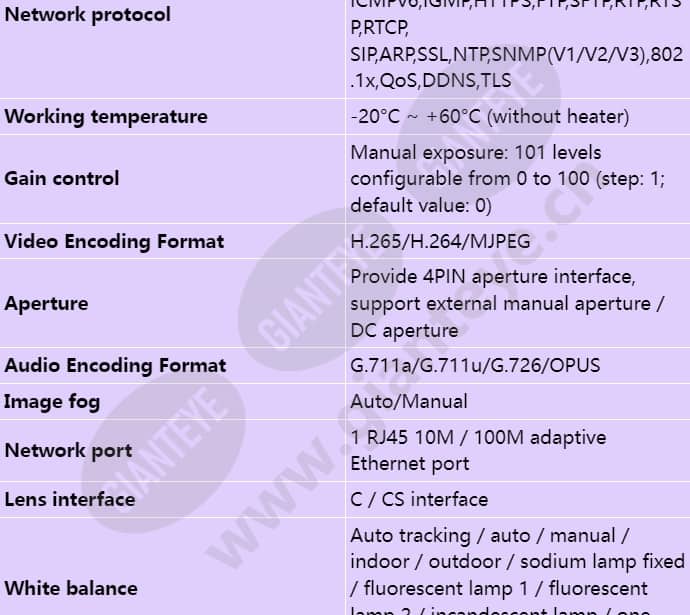

1 half-duplex RS485 interface (Phoenix head) Video interface 1 channel RCA interface CVBS video signal output, only used as debugging installation interface, support to use Web and SDK to open / close Audio interface 1 audio input, 1 audio output Alarm interface 1 input, 1 output Storage interface MicroSD card slot that supports microSDHC/microSDXC (maximum memory card capacity: 128 GB) Power supply DC12V±25%PoE(IEEE 802.3at/af) Power consumption Maximum power consumption 5.4 W; typical power 4.1 W Operating temperature -20°C ~ +60°C (without heater) Operating humidity 5% to 95% (non-condensing) Lightening protectionlevel Surge 4kV, conforming to IEC60950-1 Weight (without lens) Machine weight 0.5kg Size (without lens) Machine size: 137.2 * 78.6 * 52mm Packaging size: 230 * 125 * 108mm
