Huawei IPC6126-WDL-F 2MP Wide Dynamic Face Capture Box IP Camera 02411646

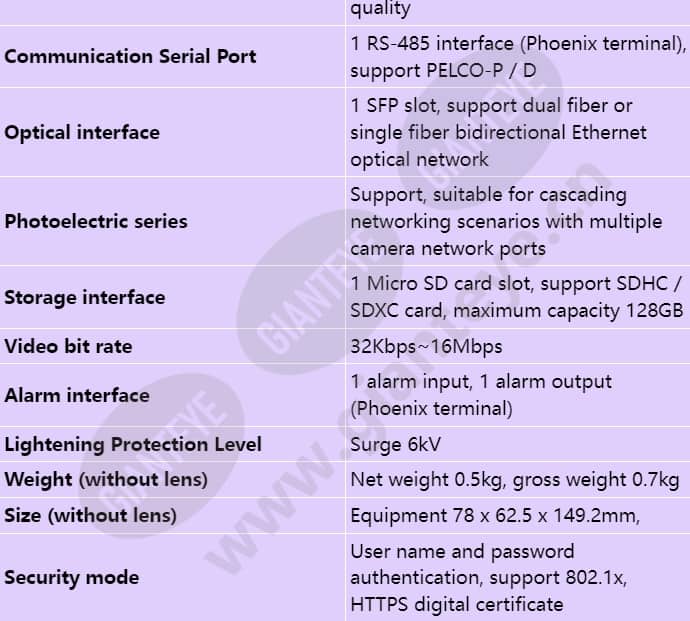

for cascading networking scenarios with multiple camera network ports Communication serialport 1 RS-485 interface (Phoenix terminal), support PELCO-P / D Alarm interface 1 alarm input, 1 alarm output (Phoenix terminal) Video interface 1 CVBS composite analog video signal (RCA interface) Audio interface 1 audio input, 1 audio output (3.5mm audio interface) Storage interface 1 Micro SD card slot, support SDHC / SDXC card, maximum capacity 128GB Power supply PoE(802.3at/af)、AC24V±25%、DC12V±25% Power consumption 5 W maximum; 4.5 W typical Operating temperature -20°C ~ 60°C, -40°C ~ + 60°C (with cover) Operating humidity 5% ~ 95% (non-condensing) Lightening protectionlevel Surge 6kV Weight (without lens) Net weight 0.5kg, gross weight 0.7kg Size (without lens) Equipment 78 x 62.5 x 149.2mm,
