TAMRON M117FM16-RG 1/1.7" 16mm 2.4-16 Manual Iris Rugged Machine Vision Lens C Mount

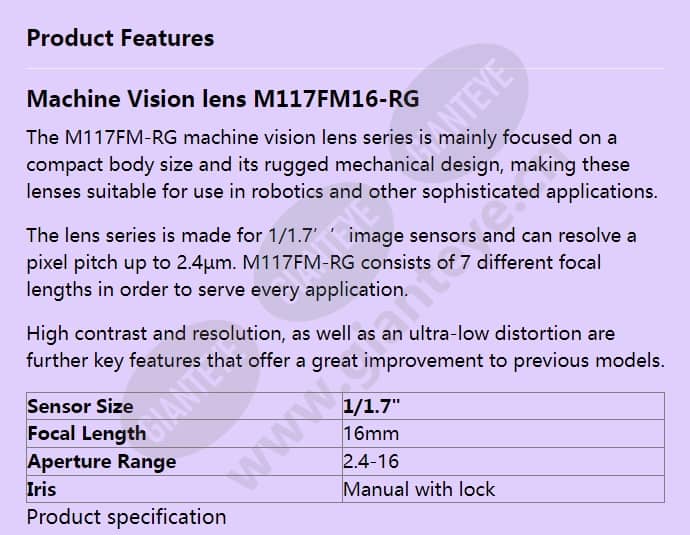

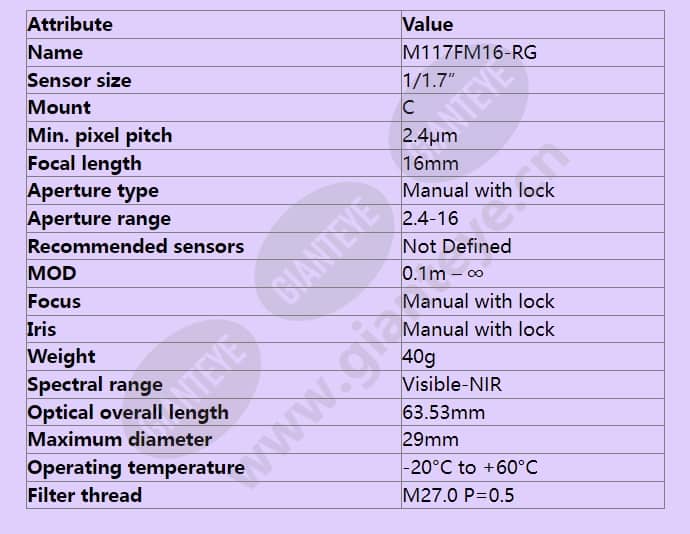

made for 1/1.7’’image sensors and can resolve a pixel pitch up to 2.4µm. M117FM-RG consists of 7 different focal lengths in order to serve every application. High contrast and resolution, as well as an ultra-low distortion are further key features that offer a great improvement to previous models. Sensor Size 1/1.7" Focal Length 16mm Aperture Range 2.4-16 Iris Manual with lock Product specification Attribute Value Name M117FM16-RG Sensor size 1/1.7″ Mount C Min. pixel pitch 2.4μm Focal length 16mm Aperture type Manual with lock Aperture range 2.4-16 Recommended sensors Not Defined MOD 0.1m – ∞ Focus Manual with lock Iris Manual with lock Weight 40g Spectral range Visible-NIR Optical overall length 63.53mm Maximum diameter 29mm Operating temperature -20°C to +60°C Filter thread M27.0 P=0.5
