TP-LINK TL-FC2314B-20 Cloud Management Fiber Transceiver

Brand: TP-LINK
Model: TL-FC2314B-20
Dimensions: 94.50mm x 73mm x 27mm

  • supports remote management through business cloud app, business cloud network cloud platform (web end) and local web management
    • support 802.1Q VLAN, MTU VLAN, port VLAN < Li> Support QoS, bandwidth control, storm suppression support port aggregation, port traffic statistics, port monitoring, port isolation
  • support bandwidth control, storm suppression
  • Support cable detection, loopback detection
    • Shell size
    • 94.5mm*73mm*27mm
    Input power
    • 9VDC/0.6A
    Use environment
    • operating temperature: -20° C ~ 50° C
    • storage temperature: -40° C ~ 70° C
    • Working humidity: 10% ~ 90% RH does not condense < / li>
    • storage humidity: 5% ~ 90% RH does not condense

Product Features

    • 1 100/1000Mbps SC fiber port, 4 10/100/1000Mbps RJ45 network port
    • Based on wavelength division multiplexing technique (1310 nm emission wavelength, 1550 nm receiving wavelength), single mode single fiber transmission, farther distance up to 20 km
    • Support Business Cloud APP end, web-side remote management and local Web management
    • Support intelligent start, abnormal alarm, fast discharge
    • Support 802.1Q VLAN, QoS, bandwidth control
    • Support port aggregation, port traffic statistics, port monitoring, port isolation
    • Suggestions and TL-FC2311A-20 use

Technical Specifications

Property DescriptionProperty Value
Supported standards
  • IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x、IEEE 802.3ad、IEEE 802.1p、IEEE 802.1q
port
  • 1 100/1000Mbps SC Fiber Port
  • 4 10/100/1000Mbps RJ45 Net Port
Transmission wavelength
  • TX:1310nm
  • RX:1550nm
Transmission medium
  • fiber: Support 20km single mode single fiber
  • network cable: super five or more UTP and STP

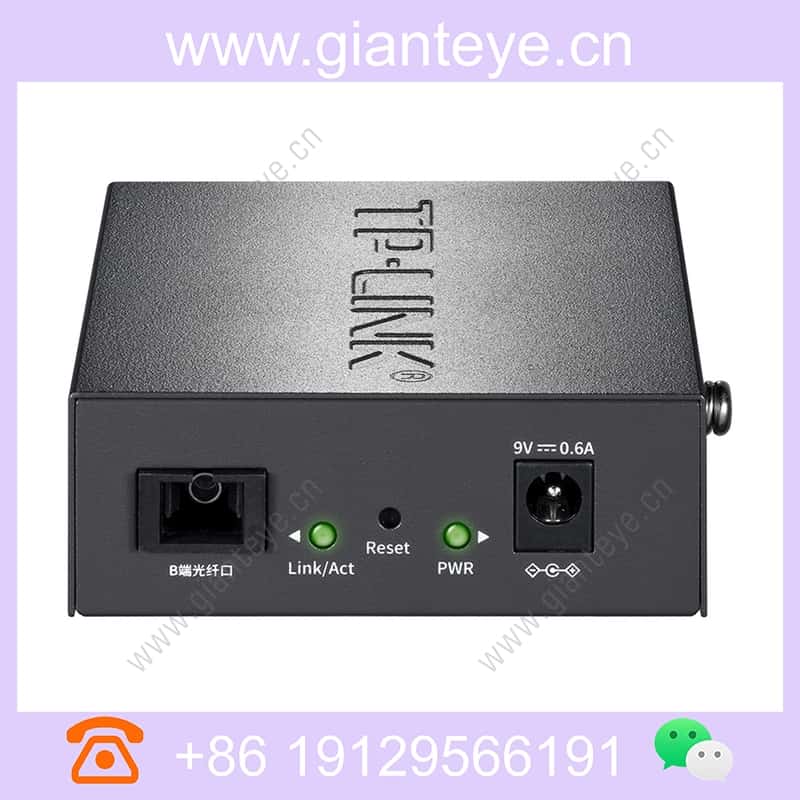

Indicator light
  • optical port and network port LINK / ACT, PWR
Network management functions
  • supports remote management through business cloud app, business cloud network cloud platform (web end) and local web management
    • support 802.1Q VLAN, MTU VLAN, port VLAN < Li> Support QoS, bandwidth control, storm suppression support port aggregation, port traffic statistics, port monitoring, port isolation
  • support bandwidth control, storm suppression
  • Support cable detection, loopback detection
Shell size
  • 94.5mm*73mm*27mm
Input power
  • 9VDC/0.6A
Use environment
  • operating temperature: -20° C ~ 50° C
  • storage temperature: -40° C ~ 70° C
  • Working humidity: 10% ~ 90% RH does not condense < / li>
  • storage humidity: 5% ~ 90% RH does not condense
