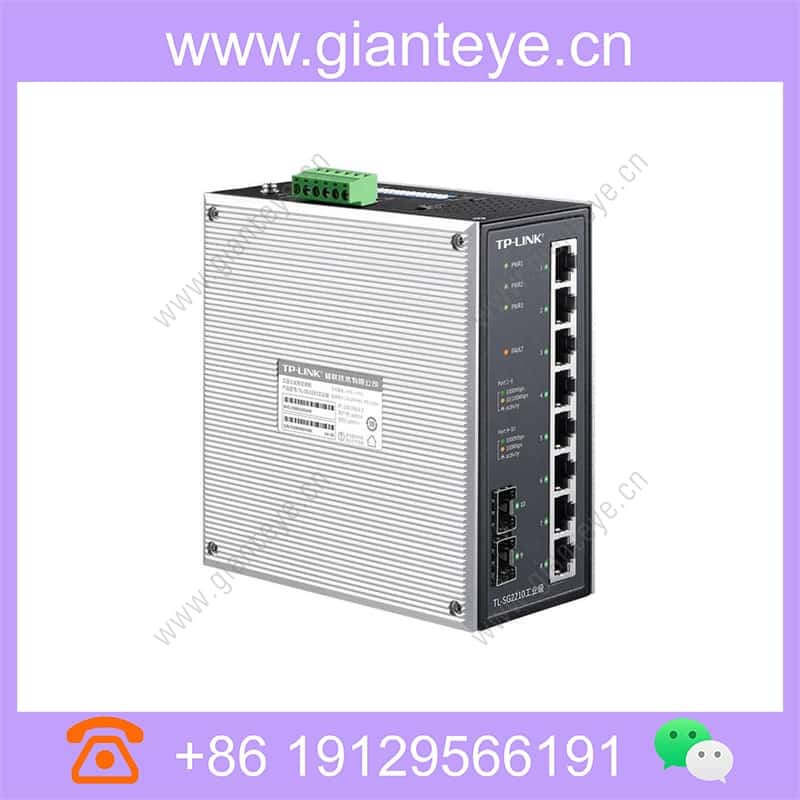

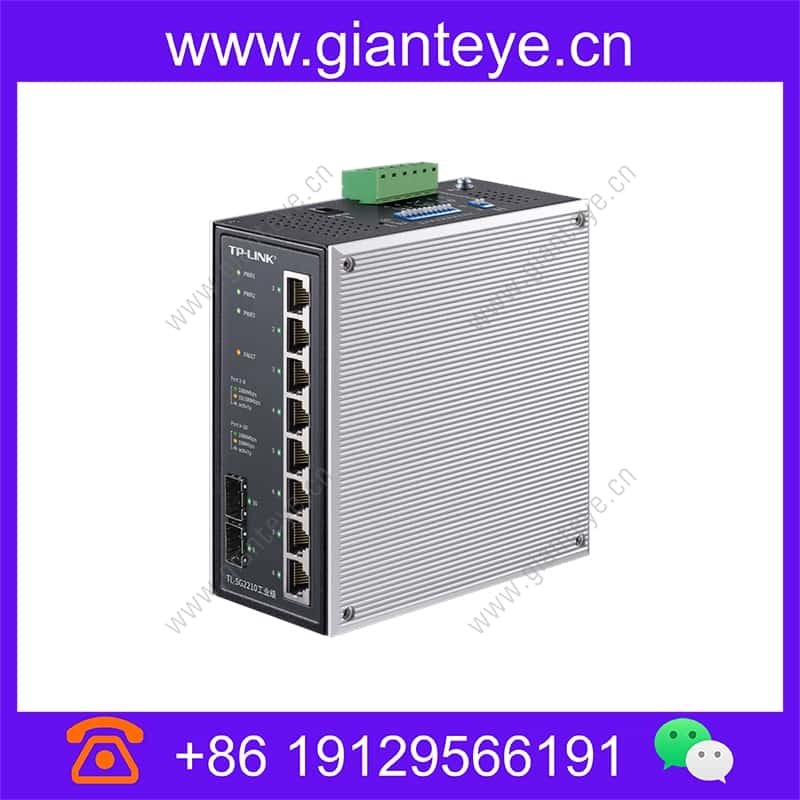

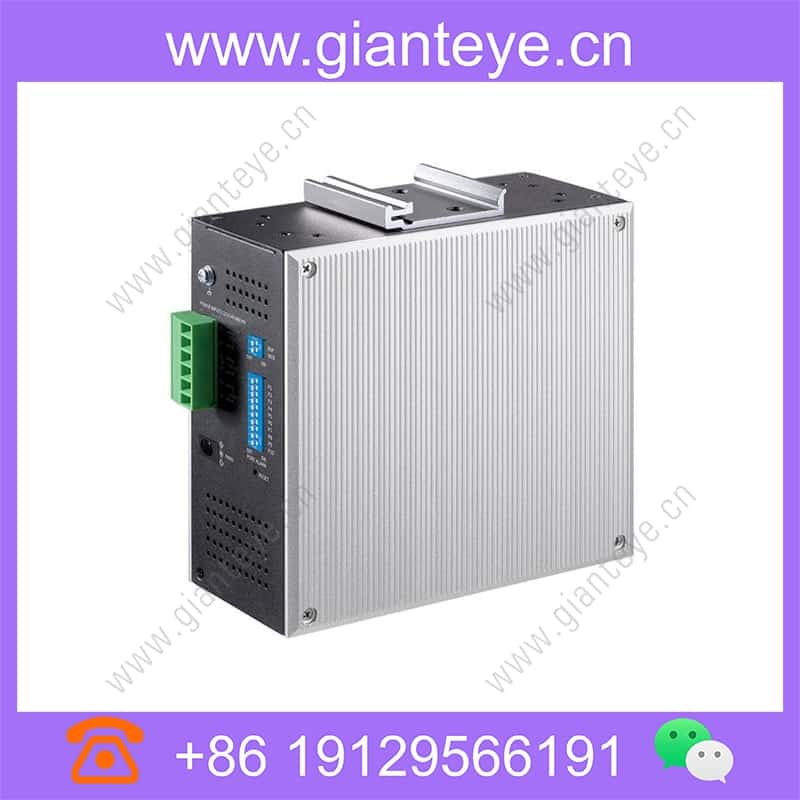

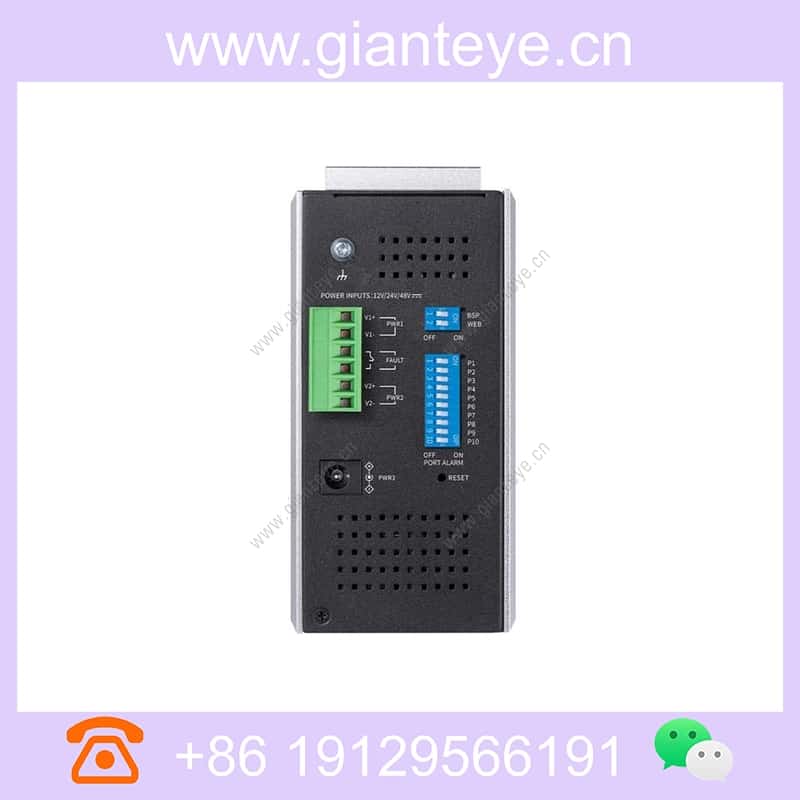

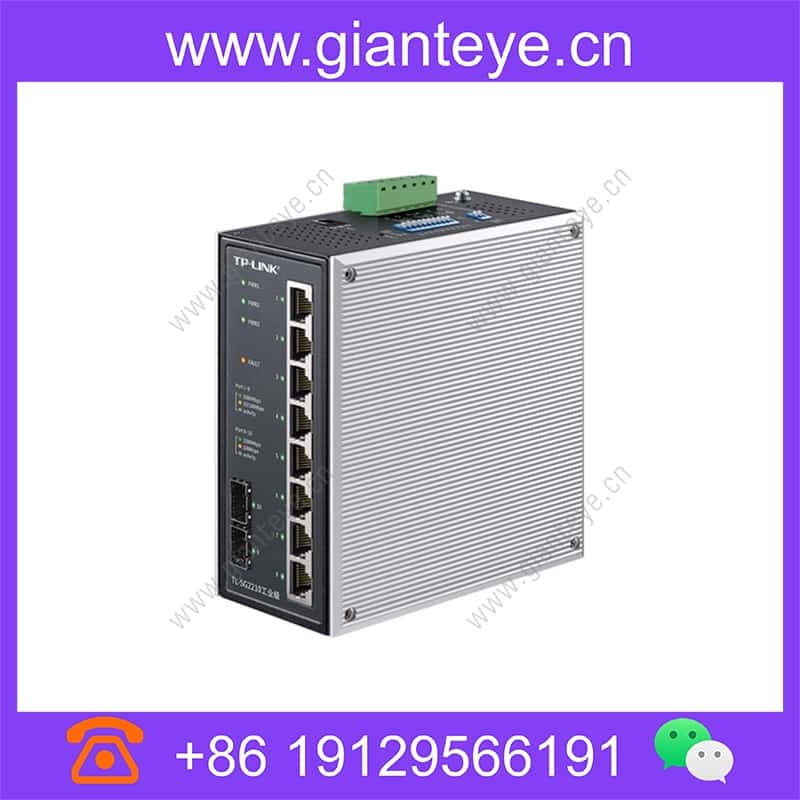

TP-LINK TL-SG2210 Industrial Grade Industrial Grade Switch

Brand: TP-LINK

Model: TL-SG2210-Industrial

Dimensions: 137mm x 128mm x 66mm

temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation Gigabit RJ45 port 8 Gigabit SFP port 2 MAC address capacity 4K Mode switch Support three working modes: Web management, VLAN isolation, standard switching Network management functions Support management via Web page Support 802.1Q VLAN, MTU VLAN, port VLAN Support QoS, bandwidth control, storm suppression Support port aggregation, port mirroring, port monitoring Support bandwidth control, storm suppression Support cable detection, loopback detection Shell size (mm) 209*126*26 Input power 9VDC/0.85A Use environment Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing

Product Features

8 10/100/1000Base-T RJ45 ports
2 Gigabit SFP Optical Port
Support Business Cloud APP and web-side remote management
Support intelligent start, abnormal alarm, fast discharge
Support 802.1Q VLAN, QoS, bandwidth control
Support port traffic statistics, port monitoring, port convergence, port isolation
Support cloud management, VLAN isolation, standard exchange three modes
* This model is only 3.0 and above supports cloud management functions

Product model	TL-SG2226	TL-SG2024	TL-SG2218	TL-SG2016	TL-SG2210	TL-SG2008
Gigabit RJ45 port	24	24	16	16	8	8
Gigabit SFP port	2	0	2	0	2	0
MAC address capacity	8K	8K	8K	8K	4K	4K
Mode switch	Support cloud management, VLAN isolation, standard exchange three working modes
Network management functions	Support remote management through Shangyun APP and Shangyun network cloud platform (Web terminal) Support local web management Support 802.1Q VLAN, MTU VLAN, port VLAN Support to configure port flow control, duplex, on/off Support port aggregation, port monitoring, port isolation, port traffic statistics Support DHCP Snooping (except 5/8 port models) Support QoS, port egress/ingress speed limit, storm suppression Support cable detection, loopback detection
Business cloud function	Support quick start Support device information reporting Support alarm push Support equipment remote operation and maintenance
Shell size (mm)	44018044	44018044	44018044	44018044	20912626	20912626
Input power	100~240VAC, 50/60Hz	100~240VAC, 50/60Hz	100~240VAC, 50/60Hz	100~240VAC, 50/60Hz	9VDC/0.85A	100~240VAC, 50/60Hz
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Technical Specifications

Property Description	Property Value
Gigabit RJ45 port	8
Gigabit SFP port	2
MAC address capacity	4K
Mode switch	Support three working modes: Web management, VLAN isolation, standard switching
Network management functions	Support management via Web page Support 802.1Q VLAN, MTU VLAN, port VLAN Support QoS, bandwidth control, storm suppression Support port aggregation, port mirroring, port monitoring Support bandwidth control, storm suppression Support cable detection, loopback detection
Shell size (mm)	20912626
Input power	9VDC/0.85A
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
