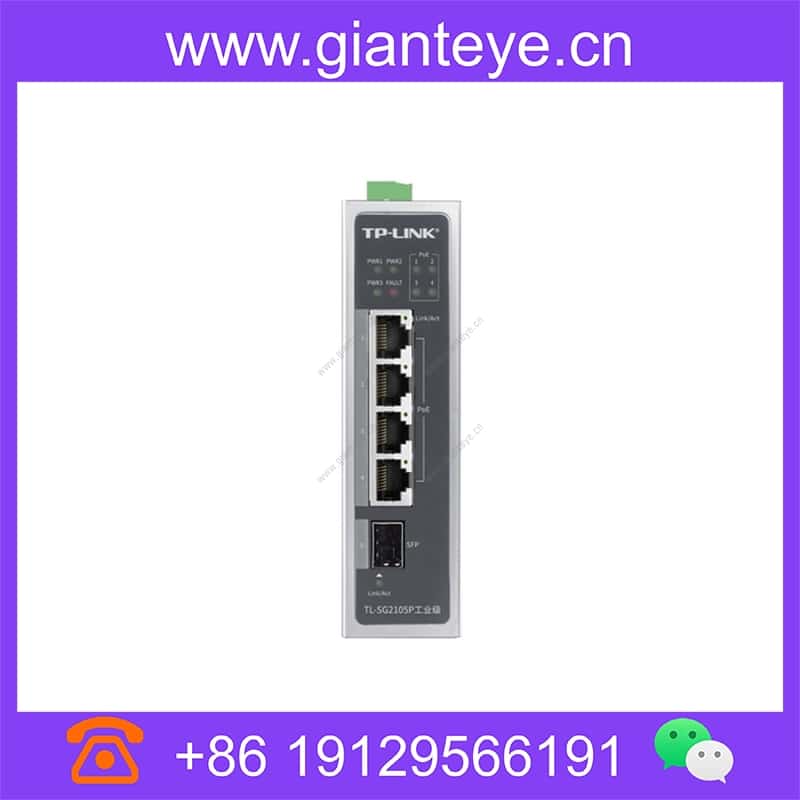

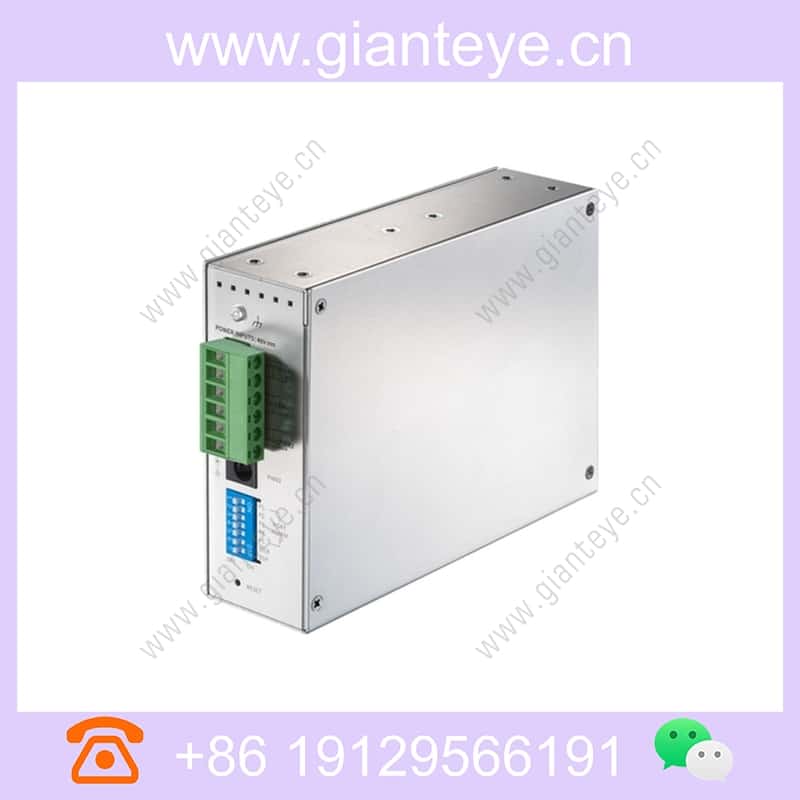

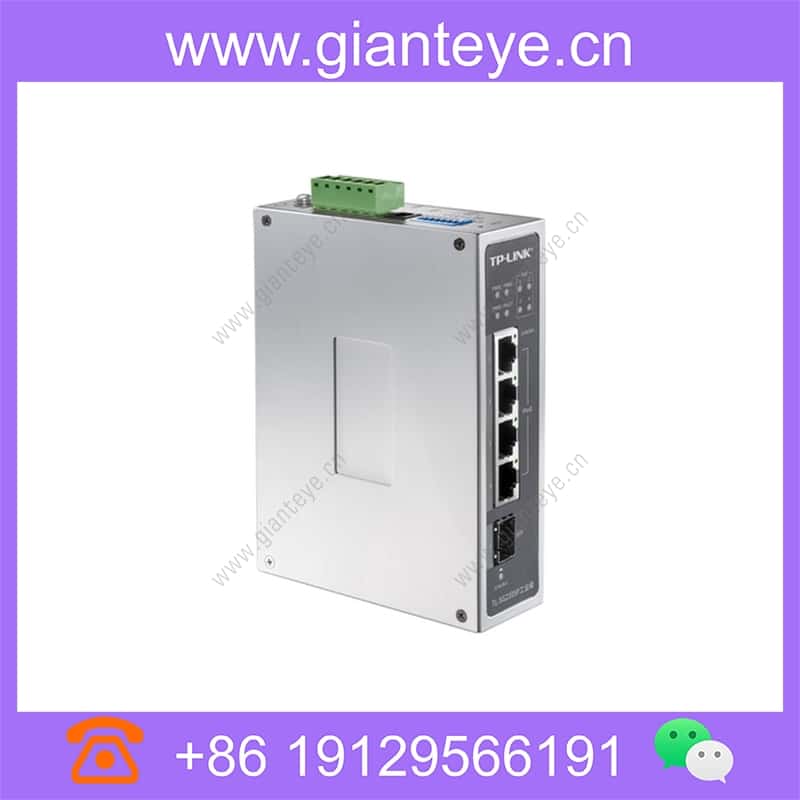

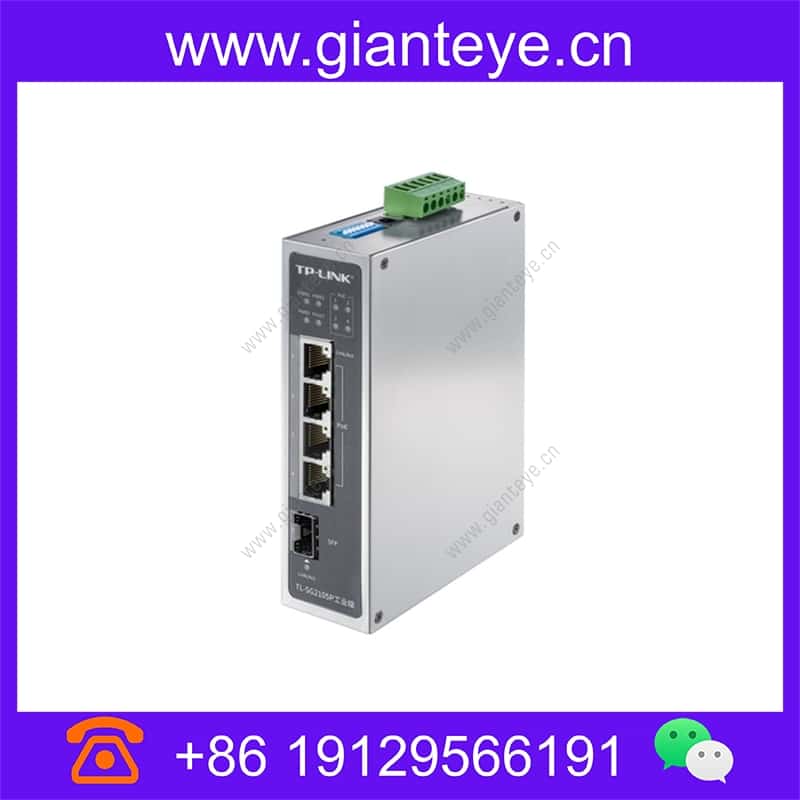

TP-LINK TL-SG2105P Industrial Web Managed Industrial Ethernet PoE Switch
RJ45 port 4 Gigabit SFP port 1 Maximum PoE output power of the whole machine 60W Maximum PoE output power of the port 30W PoE power supply standard IEEE 802.3af/at MAC address capacity 2K Mode switch Support three working modes: Web management, VLAN isolation, standard switching Network management functions Support management via Web page Support 802.1Q VLAN, MTU VLAN, port VLAN Support QoS, bandwidth control, storm suppression Support port aggregation, port mirroring, port monitoring Support bandwidth control, storm suppression Support cable detection, loopback detection Shell size (mm) 100*98*25 Input power 53.5VDC/1.22A Use environment Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
Product Features
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-SG2105P |
| Gigabit RJ45 port | 4 |
| Gigabit SFP port | 1 |
| Maximum PoE output power of the whole machine | 60W |
| Maximum PoE output power of the port | 30W |
| PoE power supply standard | IEEE 802.3af/at |
| MAC address capacity | 2K |
| Mode switch | Support three working modes: Web management, VLAN isolation, standard switching |
| Network management functions | Support management via Web page Support 802.1Q VLAN, MTU VLAN, port VLAN Support QoS, bandwidth control, storm suppression Support port aggregation, port mirroring, port monitoring Support bandwidth control, storm suppression Support cable detection, loopback detection |
| Shell size (mm) | 100*98*25 |

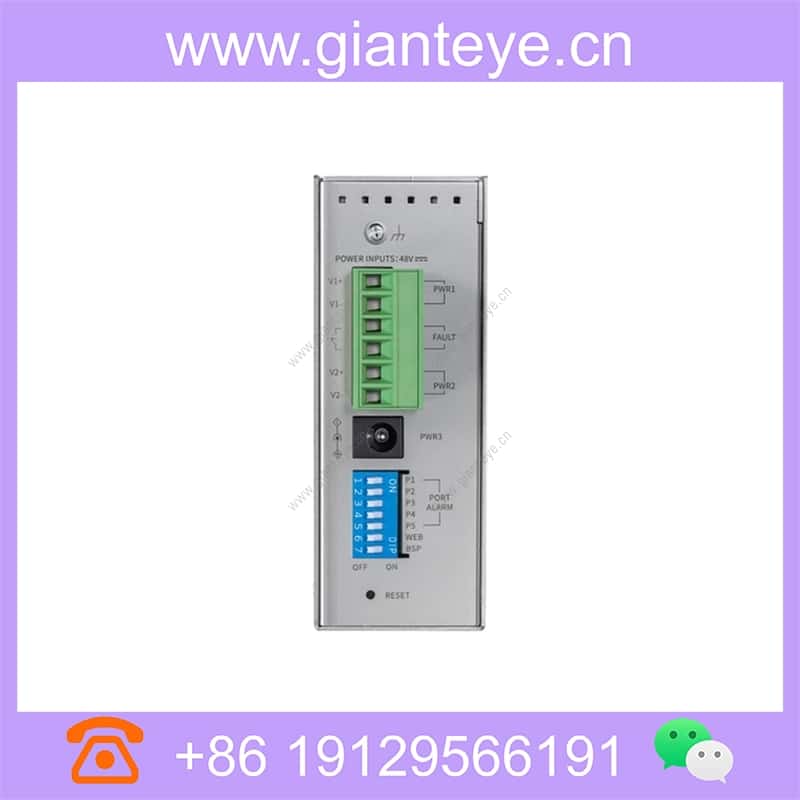

| Input power | 53.5VDC/1.22A |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing |
