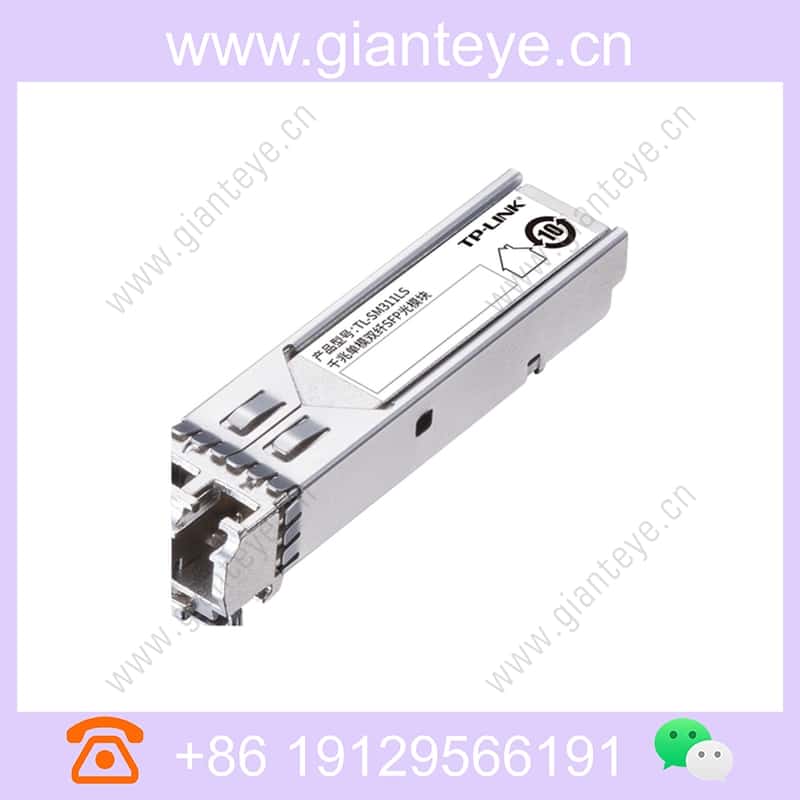

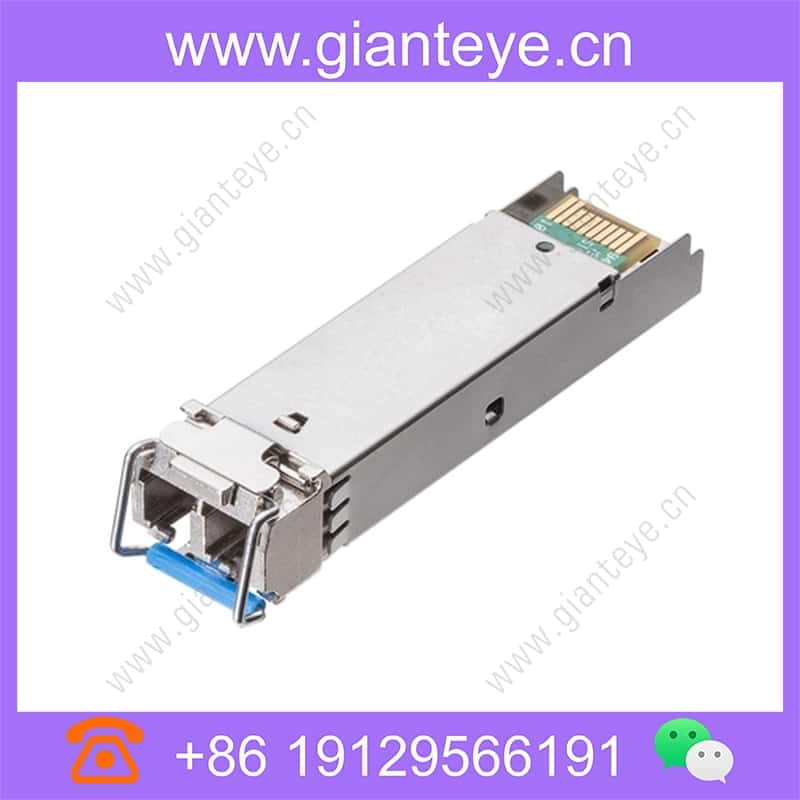

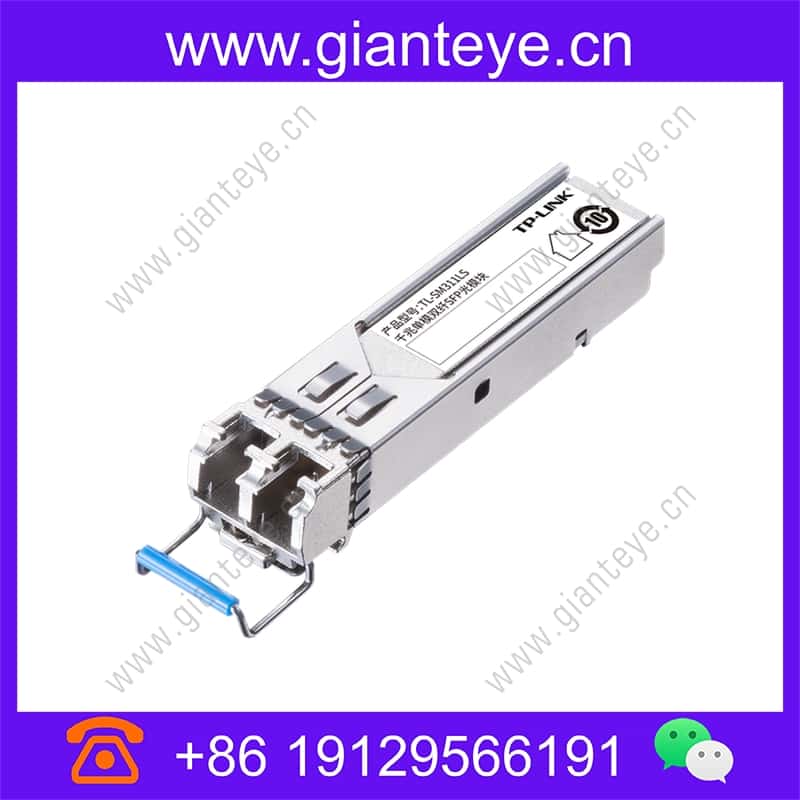

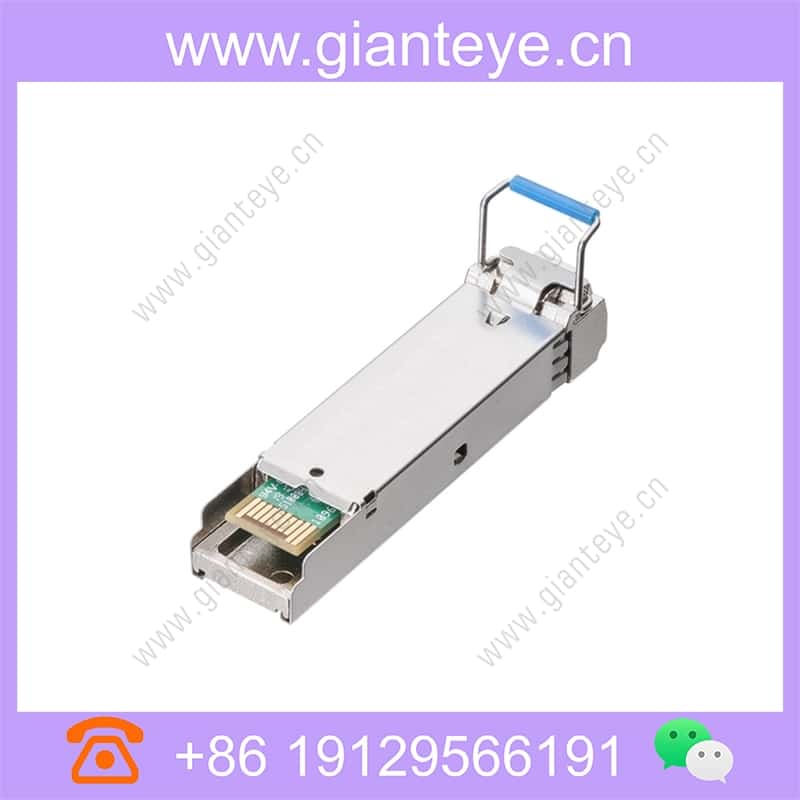

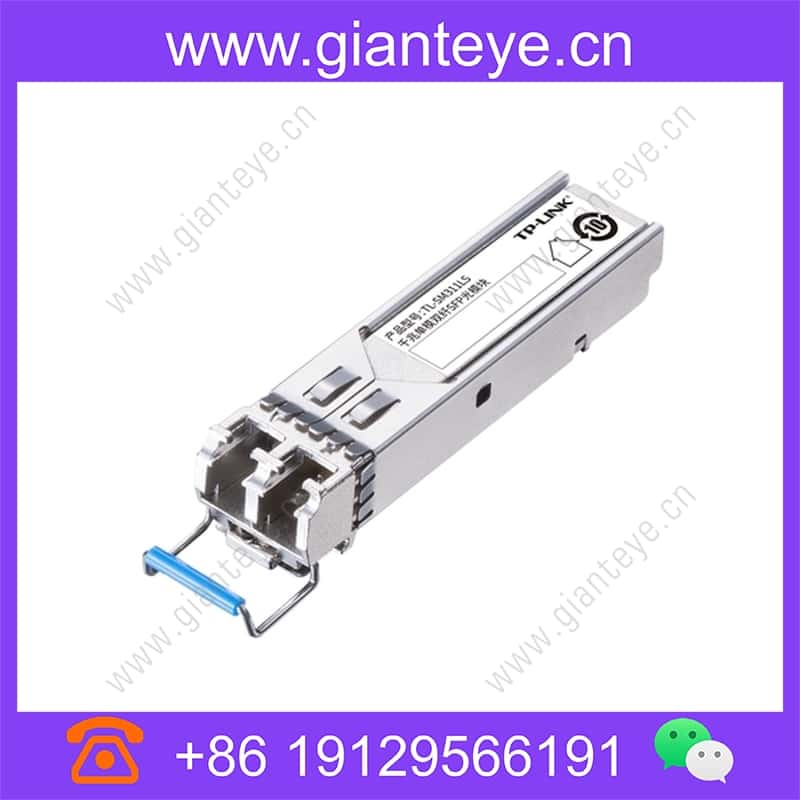

TP-LINK TL-SM311LS optical module LC single-mode SFP dual-fiber 1000Base-LX 20KM
provide high-performance, low-cost solutions for the growing demand for optical fiber transmission at home and abroad. The TL-SM311LS conforms to the SFP MSA protocol and adopts a hot-swappable standard SFP package. It is easy to use and has a wide range of applications. TL-SM311LS conforms to the IEEE 802.3z Gigabit Ethernet standard, with a rate of up to 1.25Gbps, transmitted through a pair of single-mode optical fibers, and the longest distance can reach 20KM. Supported standards IEEE 802.3z Transmission medium Single mode fiber Transmission distance 20KM Transmission rate 1.25Gbps Port type Dual Fiber LC Working wavelength 1310nm Operating Voltage 3.3V Working temperature of housing 0°C ~ 70°C Light parameter Average transmit optical power: -9 ~ -3dBm Receive sensitivity: -21dBm
Product Features
TL-SM311LS is the latest Gigabit single-mode dual-fiber SFP optical module launched by TP-LINK. Selected high-quality optical devices with superior performance provide high-performance, low-cost solutions for the growing demand for optical fiber transmission at home and abroad. The TL-SM311LS conforms to the SFP MSA protocol and adopts a hot-swappable standard SFP package. It is easy to use and has a wide range of applications. TL-SM311LS conforms to the IEEE 802.3z Gigabit Ethernet standard, with a rate of up to 1.25Gbps, transmitted through a pair of single-mode optical fibers, and the longest distance can reach 20KM. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Supported standards | IEEE 802.3z |
| Transmission medium | Single mode fiber |
| Transmission distance | 20KM |
| Transmission rate | 1.25Gbps |
| Port type | Dual Fiber LC |
| Working wavelength | 1310nm |
| Operating Voltage | 3.3V |
| Working temperature of housing | 0°C ~ 70°C |
| Light parameter | Average transmit optical power: -9 ~ -3dBm Receive sensitivity: -21dBm |
