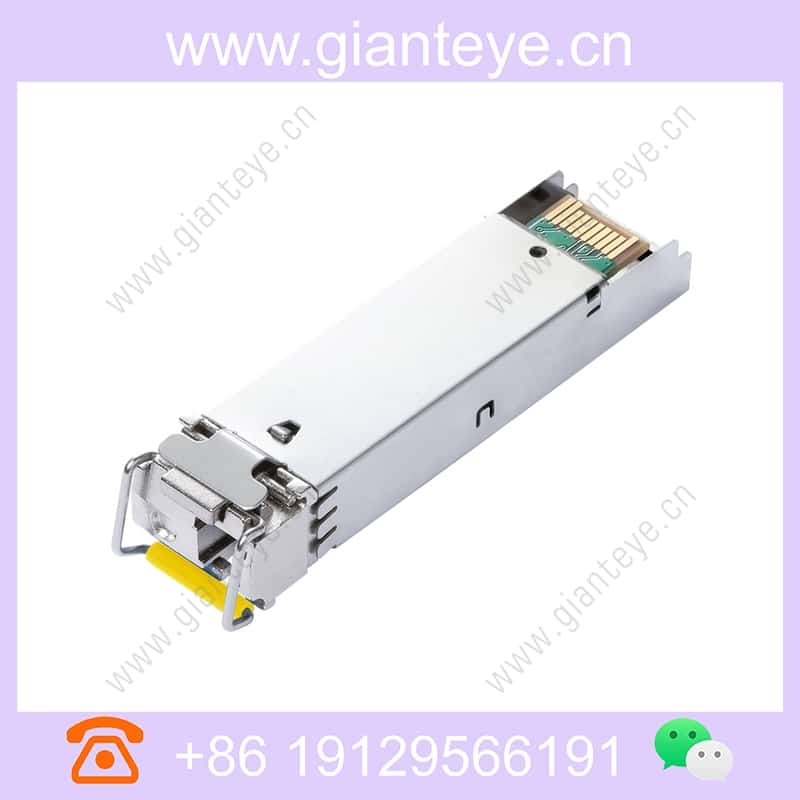

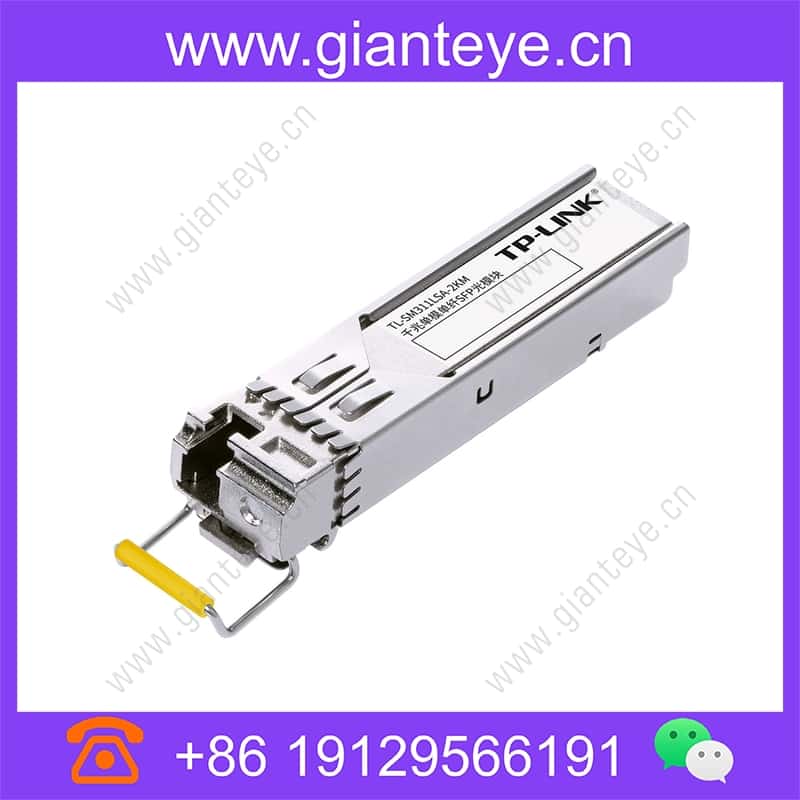

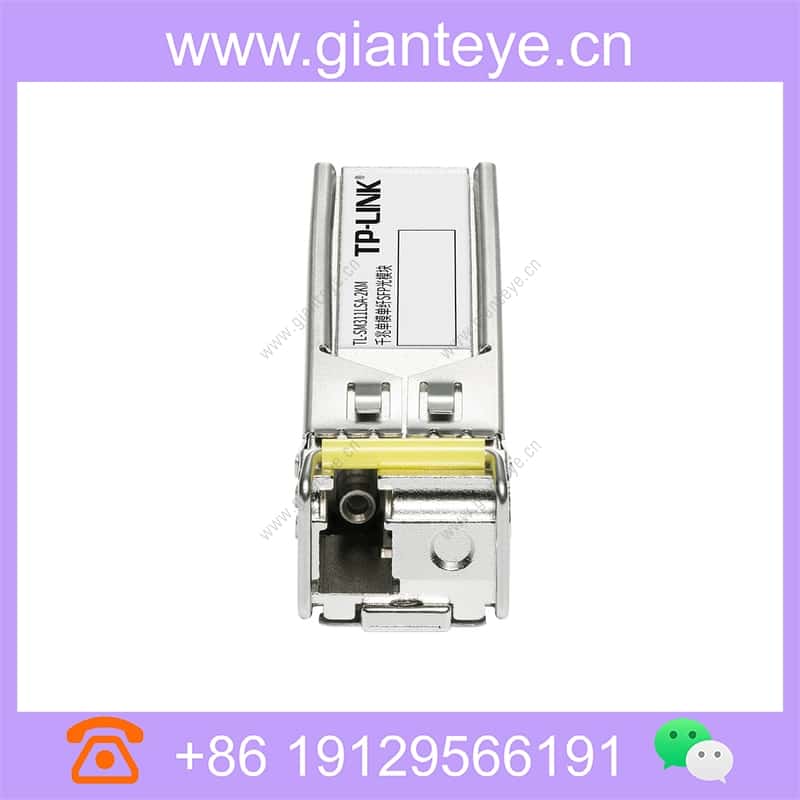

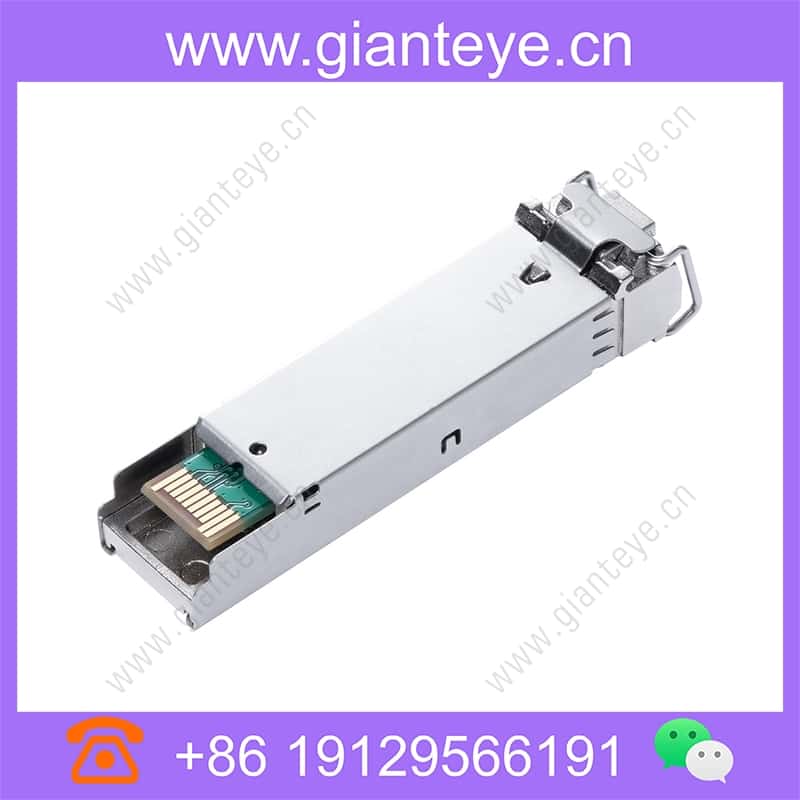

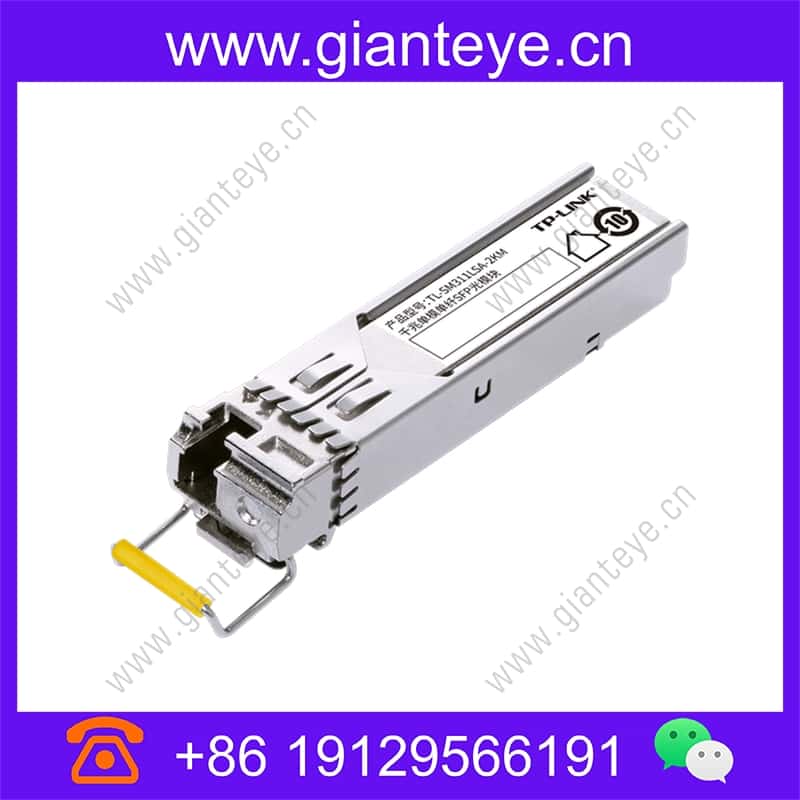

TP-LINK TL-SM311LSA-2KM optical module Gigabit single-mode SFP single fiber 1LC 2KM
for optical fiber transmission at home and abroad. The TL-SM311LSA-2KM conforms to the SFP MSA protocol and adopts a hot-swappable standard SFP package. It is easy to use and has a wide range of applications. TL-SM311LSA-2KM conforms to the IEEE 802.3z Gigabit Ethernet standard, with a rate of up to 1.25Gbps. It can be transmitted through a single single-mode fiber and the longest distance can reach 2KM. TL-SM311LSA-2KM can be used with TL-SM311LSB-2KM. Supported standards IEEE 802.3z Transmission medium Single mode fiber Transmission distance 2KM Transmission rate 1.25Gbps Port type Single fiber LC Working wavelength TX:1550nm RX:1310nm Operating Voltage 3.3V Working temperature of housing 0°C ~ 70°C Light parameter Average transmit optical power: -9 ~ -3dBm Receive sensitivity: -21dBm
Product Features
TL-SM311LSA-2KM is the latest Gigabit single-mode single-fiber SFP optical module launched by TP-LINK. Selected high-quality optical devices with superior performance provide high-performance, low-cost solutions for the growing demand for optical fiber transmission at home and abroad. The TL-SM311LSA-2KM conforms to the SFP MSA protocol and adopts a hot-swappable standard SFP package. It is easy to use and has a wide range of applications. TL-SM311LSA-2KM conforms to the IEEE 802.3z Gigabit Ethernet standard, with a rate of up to 1.25Gbps. It can be transmitted through a single single-mode fiber and the longest distance can reach 2KM. TL-SM311LSA-2KM can be used with TL-SM311LSB-2KM. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Supported standards | IEEE 802.3z |
| Transmission medium | Single mode fiber |
| Transmission distance | 2KM |
| Transmission rate | 1.25Gbps |
| Port type | Single fiber LC |
| Working wavelength | TX:1550nm RX:1310nm |
| Operating Voltage | 3.3V |
| Working temperature of housing | 0°C ~ 70°C |
| Light parameter | Average transmit optical power: -9 ~ -3dBm Receive sensitivity: -21dBm |
