AXIS F2108 Standard Sensor 03056-001 03056-021
or upgrade is needed, the cable can be left in place. So, you can quickly remove the sensor unit and update or replace it as needed. Furthermore, AXIS F2108 offers an operating temperature range from -20°C to 40°C ( -4 °F to 104°F). This allows installations in a wide range of indoor environments without worrying about temperature-related issues. Part number for ordering Name Axis region Part number AXIS F2108 Standard Sensor AR, AU, BR, CN, EU, IN, JP, KR, UK, US 03056-001 AXIS F2108 Standard Sensor, 8 pcs AR, AU, BR, CN, EU, IN, JP, KR, UK, US 03056-021 Image sensor CMOS Max video resolution 3840x2160 Max frames per second 25/30 Focal length 4.3 mm Varifocal lens No Aperture 1.8 Horizontal field of view 110 ° Vertical field of view 55 ° Lens mount M12 Operating temperature -20 to 50 °C
Product Features

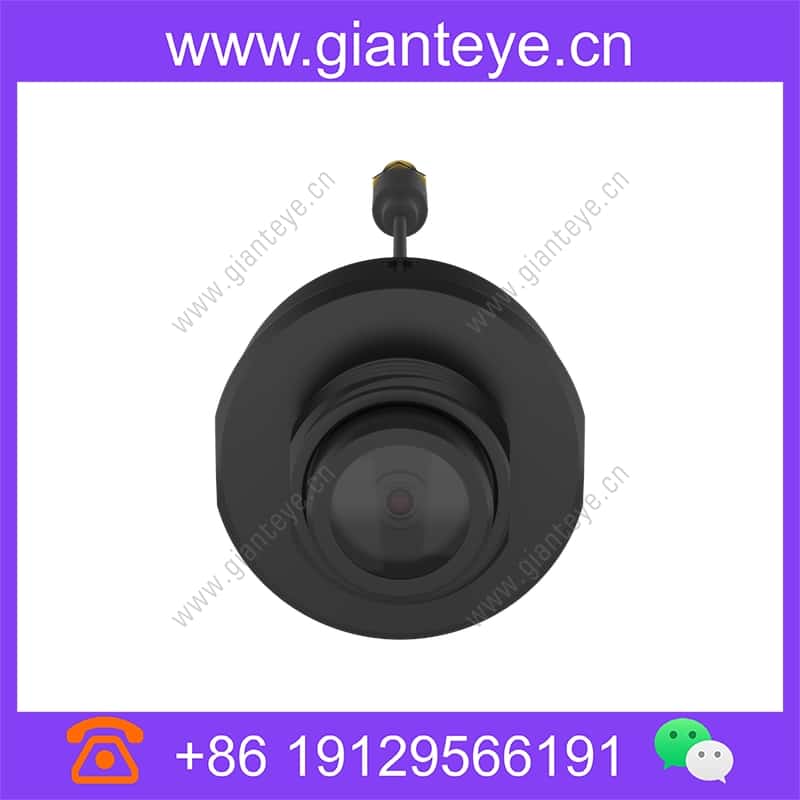

Compact standard sensor
Outstanding 4K resolution
110° horizontal field of view
Compatible with cables up to 30 m
For discreet indoor surveillance
Ideal for discreet indoor surveillance, this compact standard sensor offers outstanding 4K image quality, wide-angle 110° horizontal field of view.
High image quality
This compact standard sensor is part of AXIS F Modular Camera Series and offers excellent 4K image quality with a 110° horizontal field of view. It delivers a high pixel density and images with great details which is perfect for analytics and to perform forensic analysis.

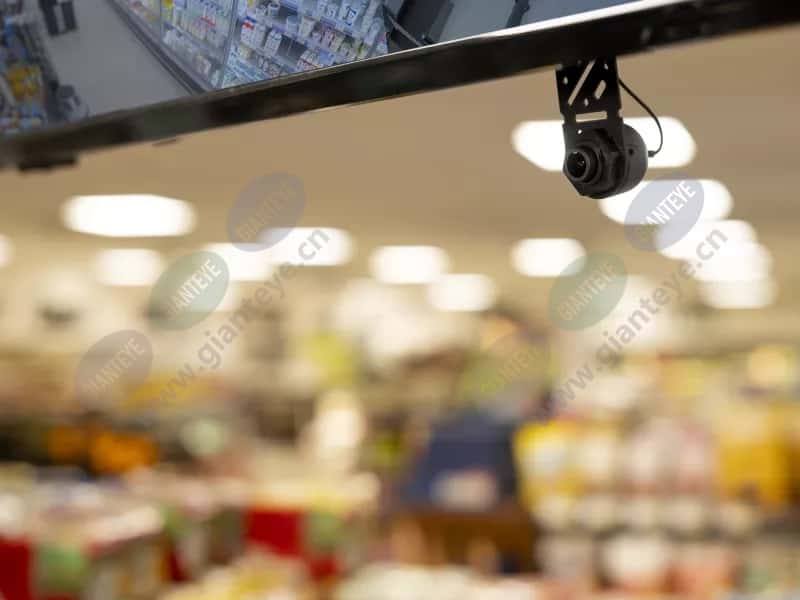

AXIS F2108 Standard Sensor mounted on PVM monitor in retail store.Discreet sensor unit

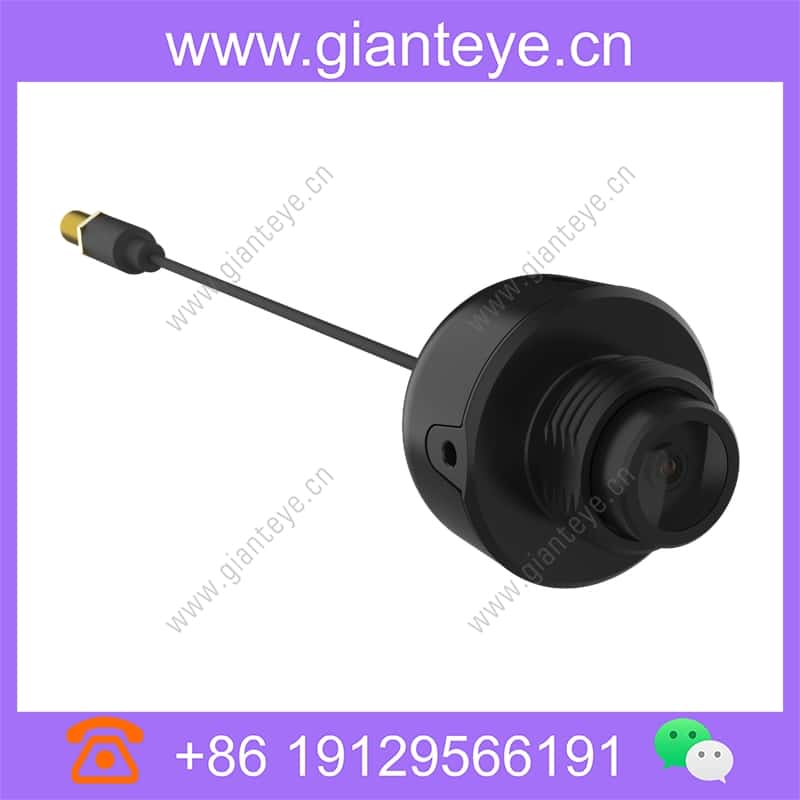

Compact in design, this standard sensor is easy to integrate in machinery like ATMs, self-checkouts, and similar applications. Based on a divided network camera concept, AXIS F2108 is designed for use with AXIS F Modular Camera Series and connects to the main unit using a detachable cable. The two parts can be placed separately from each other, up to 30 m (98 ft) apart. Because it's small, you can place this sensor unit practically anywhere. This ensures discreet and flexible installation to suit specific needs. Furthermore, Axis offers a variety of mounting accessories for flexible installation, for instance, AXIS F8212 Trim Ring.

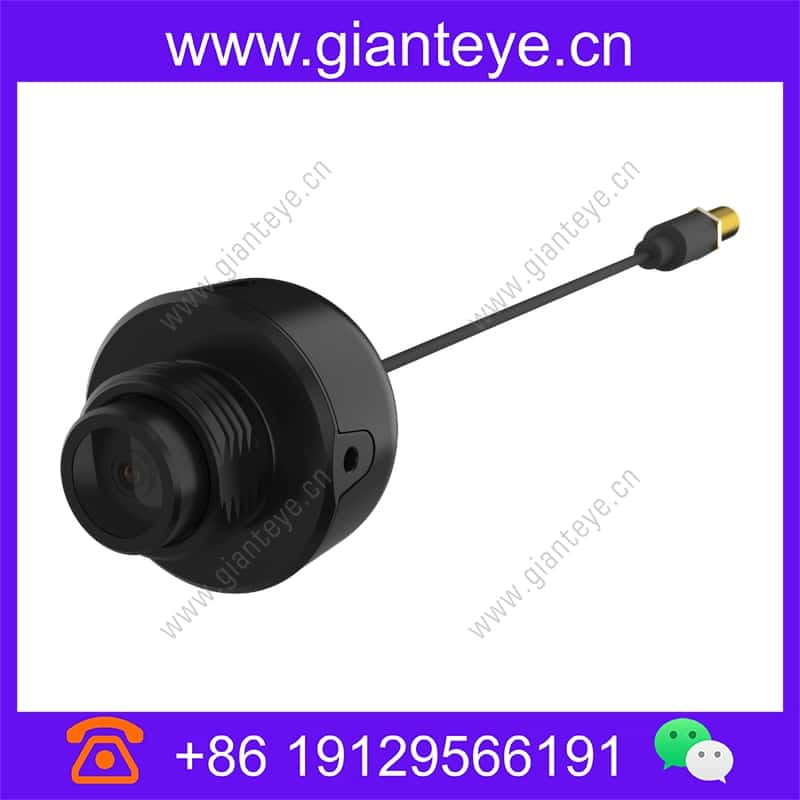

AXIS F2108 Standard Sensor offers outstanding 4K image quality and ultra compact design.Flexible installation
AXIS F2108 offers easy and flexible installation. With various sensor units available, it can be combined with up to three other sensor units within AXIS F Modular Camera Series for great flexibility. And thanks to the cable options, you can spread out the sensors from the main unit for large area coverage. When maintenance or upgrade is needed, the cable can be left in place. So, you can quickly remove the sensor unit and update or replace it as needed. Furthermore, AXIS F2108 offers an operating temperature range from -20°C to 40°C (-4°F to 104°F). This allows installations in a wide range of indoor environments without worrying about temperature-related issues.
Part number for ordering
| Name | Axis region | Part number |
|---|---|---|
| AXIS F2108 Standard Sensor | AR, AU, BR, CN, EU, IN, JP, KR, UK, US | 03056-001 |
| AXIS F2108 Standard Sensor, 8 pcs | AR, AU, BR, CN, EU, IN, JP, KR, UK, US | 03056-021 |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Property description | Property value |
| Image sensor | CMOS |
| Wide dynamic range | – |
| Min illumination/ light sensitivity (Color) | – |
| Min illumination/ light sensitivity (B/W) | – |
| Thermal sensitivity (NETD) | – |
| Thermal sensor resolution | – |
| Max video resolution | 3840x2160 |
| Max frames per second | 25/30 |
| Day and Night functionality | – |
| Electronic image stabilization | – |
| Thermal palettes | – |
| Focal length | 4.3 mm |
| Varifocal lens | No |
| Aperture | 1.8 |
| Horizontal field of view | 110 ° |
| Vertical field of view | 55 ° |
| Lens mount | M12 |
| Replaceable lens | – |
| Zipstream | – |
| H.264 | – |
| H.265 | – |
| Motion JPEG | – |
| Audio Support | – |
| Two-way audio | – |
| Audio detection | – |
| Active tampering | – |
| Alarm inputs/outputs | – |
| Serial connectors | – |
| AXIS Camera Application Platform | – |
| Digital I/O | – |
| Power over Ethernet | – |
| PoE Class | – |
| HTTPS encryption | – |
| IEEE 802.1X | – |
| Built-in IR | – |
| Local storage (memory card slot) | – |
| Operating temperature | -20 to 50 °C |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating | – |
| Power (max) | – |
| Power (average) | – |
| DC input voltage | – |
