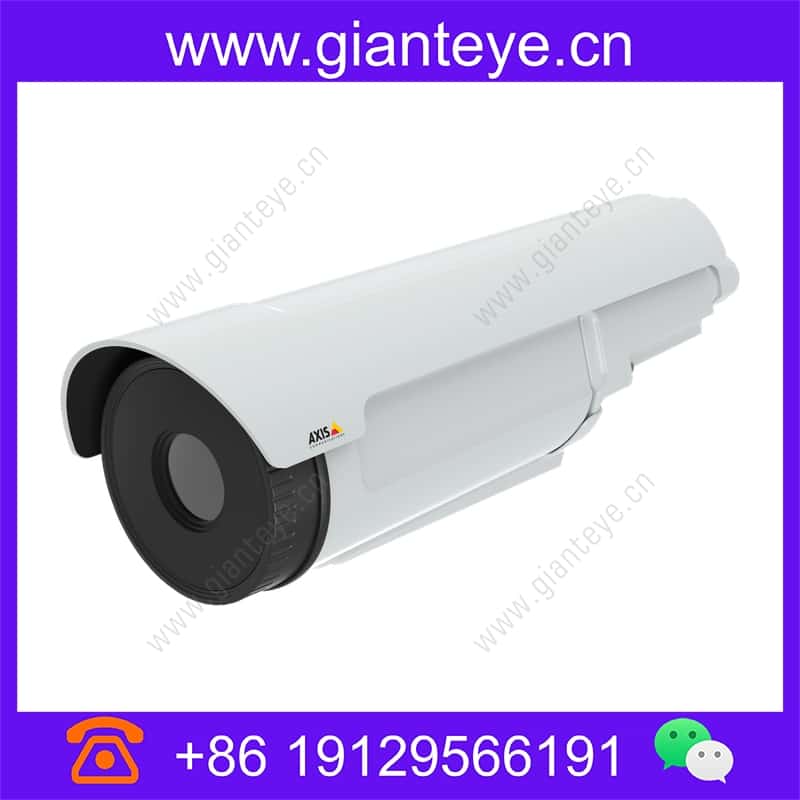

AXIS Q1931-E PT Mount Thermal Network Camera VGA Outdoor Ready

Thermal Network Camera Series (meters) (pdf) or nomographs for AXIS Q19 Thermal Network Camera Series (yards) (pdf) to determine the relation between the focal length of the lens, the number of pixels across the object, and the range. Thermal sensitivity (NETD) <70 mK Thermal sensor resolution 384x288 Maximum video resolution 768x576 Max frames per second * 8.3 / 30 / 8.3 / 30 / 8.3 / 30 / 8.3 / 8.3 / 30 / 8.3 Multiple color palettes Yes Focal length * 7 / 7 / 13 / 13 / 35 / 35 / 60 / 60 mm Horizontal field of view * 55 / 55 / 28 / 28 / 10.7 / 10.7 / 6.2 / 6.2 ° Vertical field of view - ° H.264 Baseline, Main Motion JPEG Yes Serial connectors Yes Video motion detection Yes PoE Class 3 Local storage (memory card slot) Yes Operating temperature -40 to 60 °C Outdoor ready Yes IP rating IP66
