AXIS Q1941-E Thermal Network Camera 0785-001 0789-001

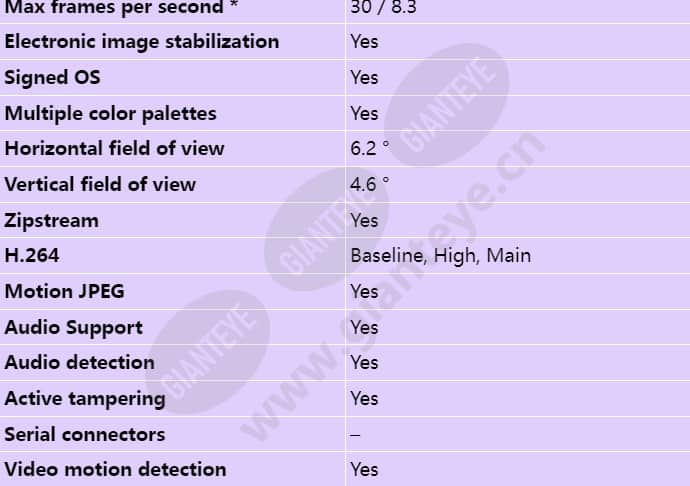

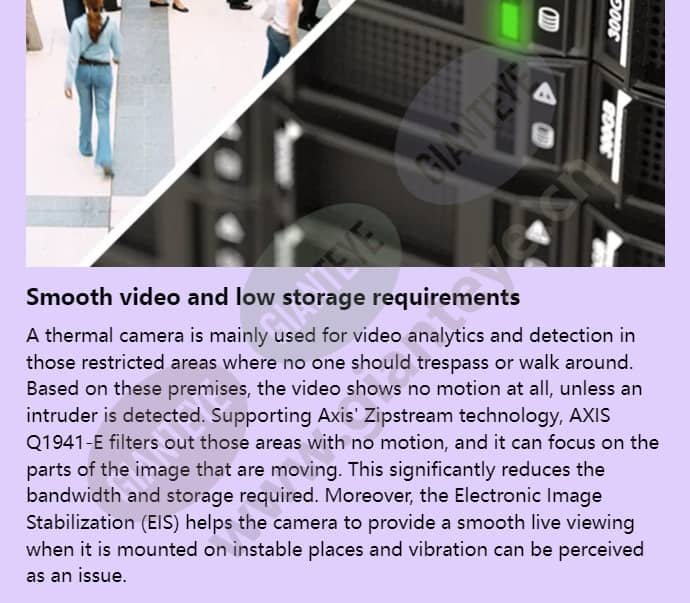

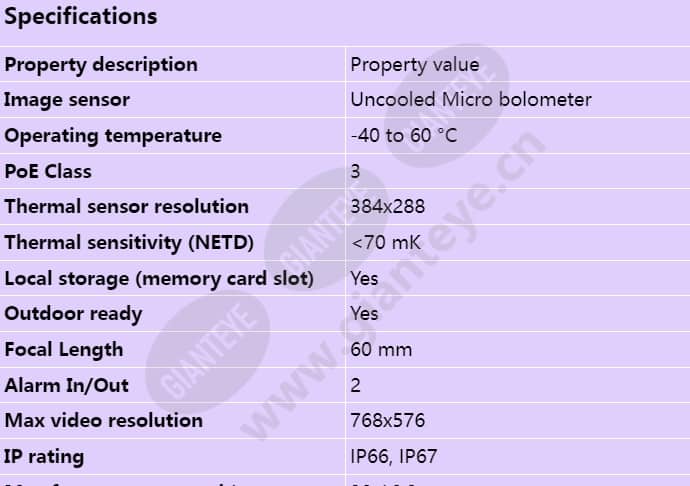

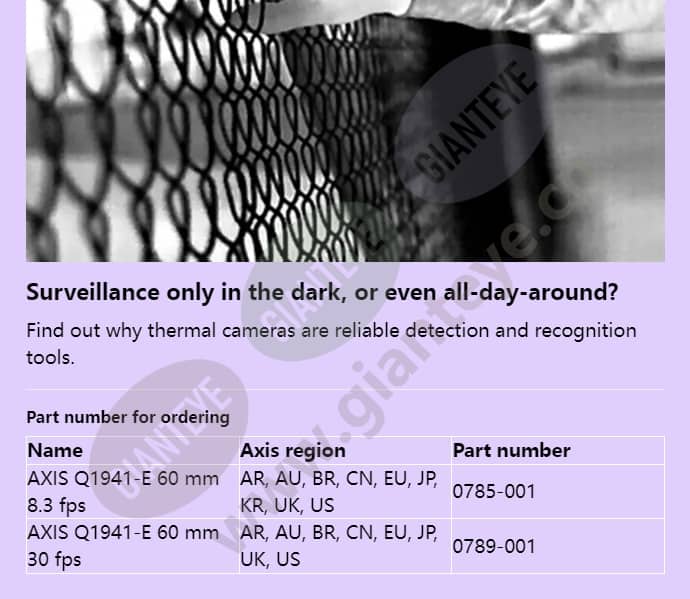

for ordering Name Axis region Part number AXIS Q1941-E 60 mm 8.3 fps AR, AU, BR, CN, EU, JP, KR, UK, US 0785-001 AXIS Q1941-E 60 mm 30 fps AR, AU, BR, CN, EU, JP, UK, US 0789-001 Image sensor Uncooled Micro bolometer Thermal sensitivity (NETD) <70 mK Thermal sensor resolution 384x288 Max video resolution 768x576 Max frames per second * 30 / 8.3 Electronic image stabilization Yes Multiple color palettes Yes Focal length 60 mm Horizontal field of view 6.2 ° Vertical field of view 4.6 ° Zipstream Yes H.264 Baseline, High, Main Motion JPEG Yes Audio Support Yes Audio detection Yes Active tampering Yes Alarm inputs/outputs 2 Video motion detection Yes PoE Class 3 Signed OS Yes Local storage (memory card slot) Yes Operating temperature -40 to 60 °C Outdoor Ready Yes IP rating IP66, IP67
