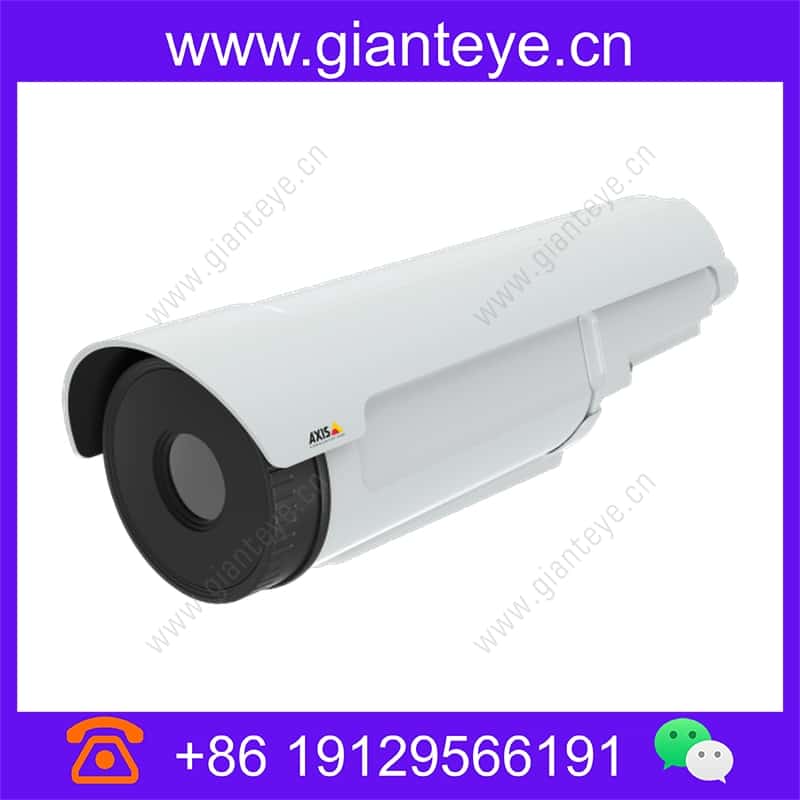

AXIS Q1932-E PT Mount Thermal Network Camera 4CIF Outdoor Ready

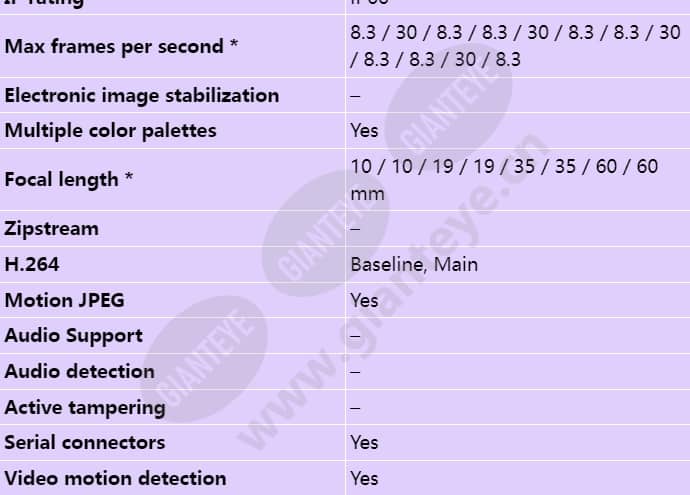

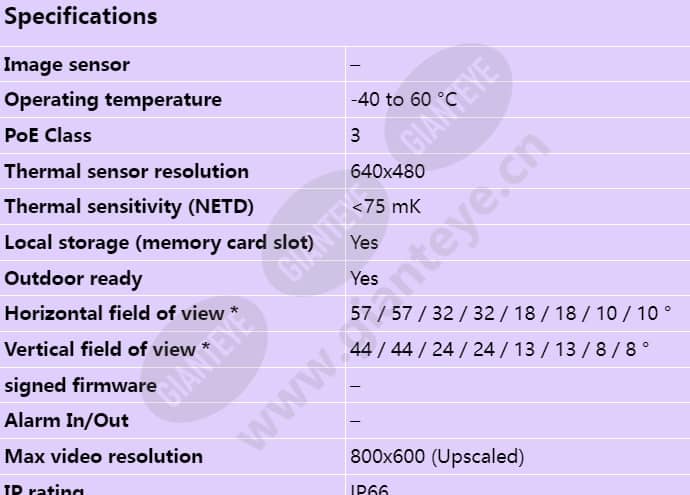

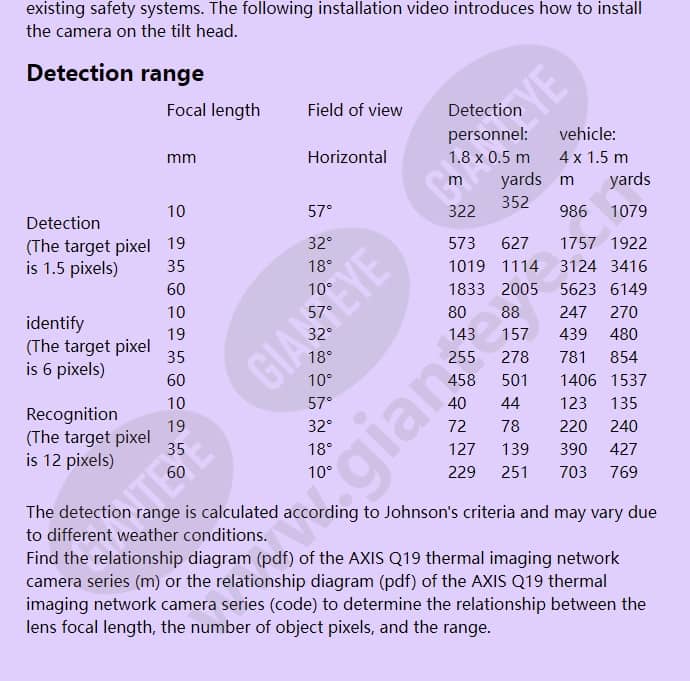

diagram (pdf) of the AXIS Q19 thermal imaging network camera series (code) to determine the relationship between the lens focal length, the number of object pixels, and the range. Thermal sensitivity (NETD) <75 mK Thermal sensor resolution 640x480 Maximum video resolution 800x600 (Upscaled) Max frames per second * 8.3 / 30 / 8.3 / 8.3 / 30 / 8.3 / 8.3 / 30 / 8.3 / 8.3 / 30 / 8.3 Multiple color palettes Yes Focal length * 10 / 10 / 19 / 19 / 35 / 35 / 60 / 60 mm Horizontal field of view * 57 / 57 / 32 / 32 / 18 / 18 / 10 / 10 ° Vertical field of view * 44 / 44 / 24 / 24 / 13 / 13 / 8 / 8 ° H.264 Baseline, Main Motion JPEG Yes Serial connectors Yes Video motion detection Yes PoE Class 3 Local storage (memory card slot) Yes Operating temperature -40 to 60 °C Outdoor ready Yes IP rating IP66
