TAMRON LW10F42-ET 3.7mm F/1.1 42° Thermal Camera Module

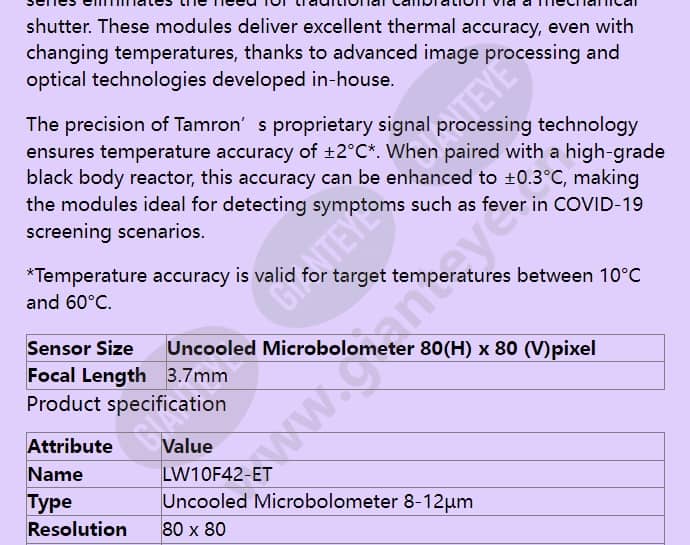

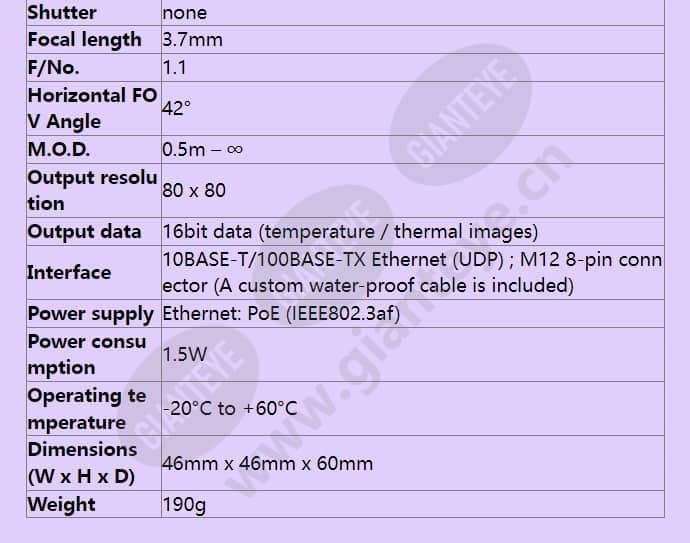

to ±0.3°C, making the modules ideal for detecting symptoms such as fever in COVID-19 screening scenarios. *Temperature accuracy is valid for target temperatures between 10°C and 60°C. Sensor Size Uncooled Microbolometer 80(H) x 80 (V)pixel Focal Length 3.7mm Product specification Attribute Value Name LW10F42-ET Type Uncooled Microbolometer 8-12µm Resolution 80 x 80 Shutter none Focal length 3.7mm F/No. 1.1 Horizontal FOV Angle 42° M.O.D. 0.5m – ∞ Output resolution 80 x 80 Output data 16bit data (temperature / thermal images) Interface 10BASE-T/100BASE-TX Ethernet (UDP) ; M12 8-pin connector (A custom water-proof cable is included) Power supply Ethernet: PoE (IEEE802.3af) Power consumption 1.5W Operating temperature -20°C to +60°C Dimensions (W x H x D) 46mm x 46mm x 60mm Weight 190g
