TAMRON LW10F90-E 1.9mm F/1.3 90° Thermal Camera Module

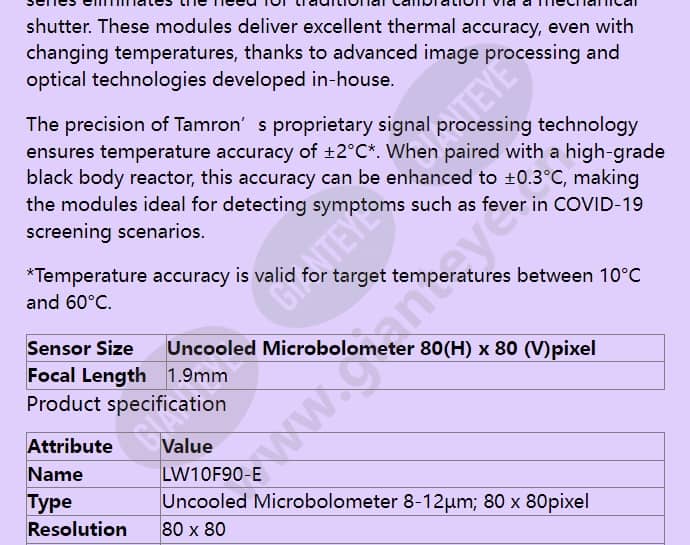

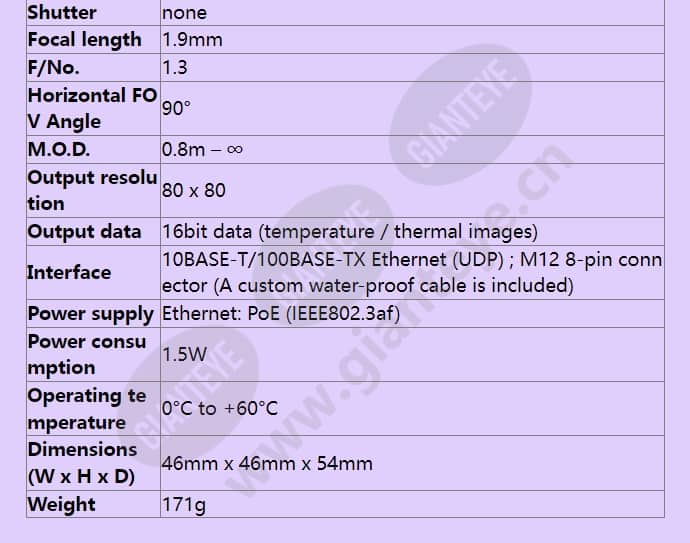

making the modules ideal for detecting symptoms such as fever in COVID-19 screening scenarios. *Temperature accuracy is valid for target temperatures between 10°C and 60°C. Sensor Size Uncooled Microbolometer 80(H) x 80 (V)pixel Focal Length 1.9mm Product specification Attribute Value Name LW10F90-E Type Uncooled Microbolometer 8-12µm; 80 x 80pixel Resolution 80 x 80 Shutter none Focal length 1.9mm F/No. 1.3 Horizontal FOV Angle 90° M.O.D. 0.8m – ∞ Output resolution 80 x 80 Output data 16bit data (temperature / thermal images) Interface 10BASE-T/100BASE-TX Ethernet (UDP) ; M12 8-pin connector (A custom water-proof cable is included) Power supply Ethernet: PoE (IEEE802.3af) Power consumption 1.5W Operating temperature 0°C to +60°C Dimensions (W x H x D) 46mm x 46mm x 54mm Weight 171g
