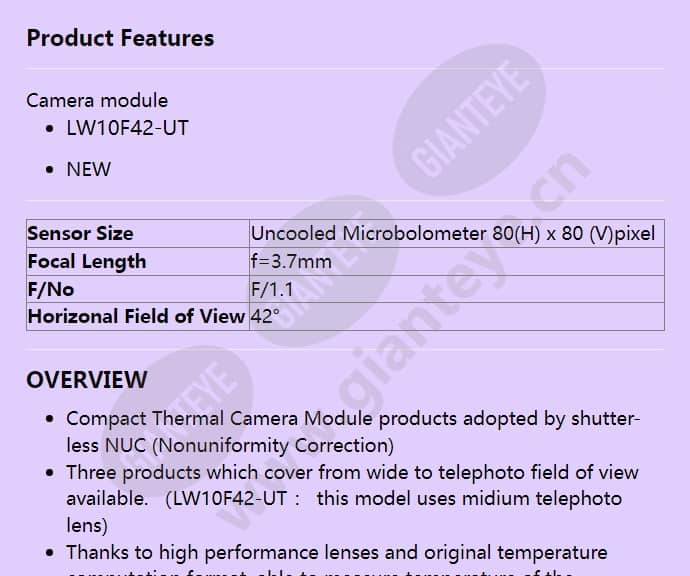

TAMRON LW10F42-UT 3.7mm F/1.1 42° Thermal Camera Module

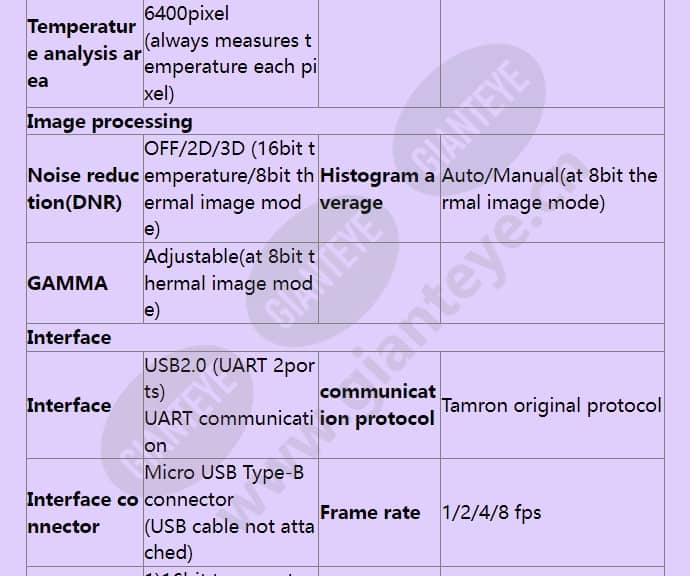

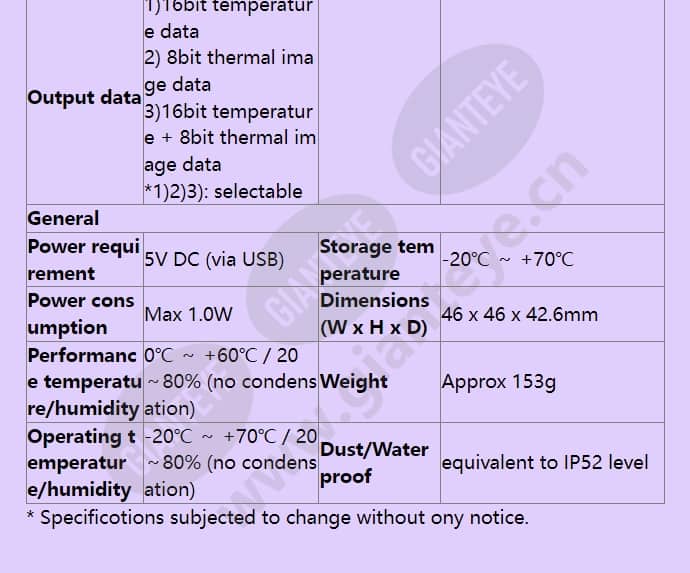

thermal image mode) GAMMA Adjustable(at 8bit thermal image mode) Interface Interface USB2.0 (UART 2ports) UART communication communication protocol Tamron original protocol Interface connector Micro USB Type-B connector (USB cable not attached) Frame rate 1/2/4/8 fps Output data 1)16bit temperature data 2) 8bit thermal image data 3)16bit temperature + 8bit thermal image data *1)2)3): selectable General Power requirement 5V DC (via USB) Storage temperature -20℃ ～ +70℃ Power consumption Max 1.0W Dimensions (W x H x D) 46 x 46 x 42.6mm Performance temperature/humidity 0℃ ～ +60℃ / 20 ～80% (no condensation) Weight Approx 153g Operating temperature/humidity -20℃ ～ +70℃ / 20 ～80% (no condensation) Dust/Water proof equivalent to IP52 level * Specificotions subjected to change without ony notice.
