AXIS F1004 Bullet Sensor Unit 0935-001

Brand: AXIS
Model: AXIS-F1004-BULLET-SENSOR-UNIT
Weight: 55g
Dimensions: 60mm x 60mm x 89mm

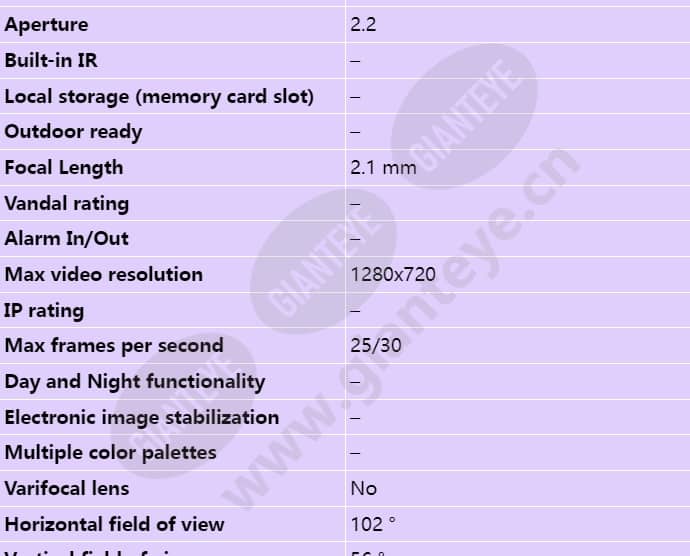

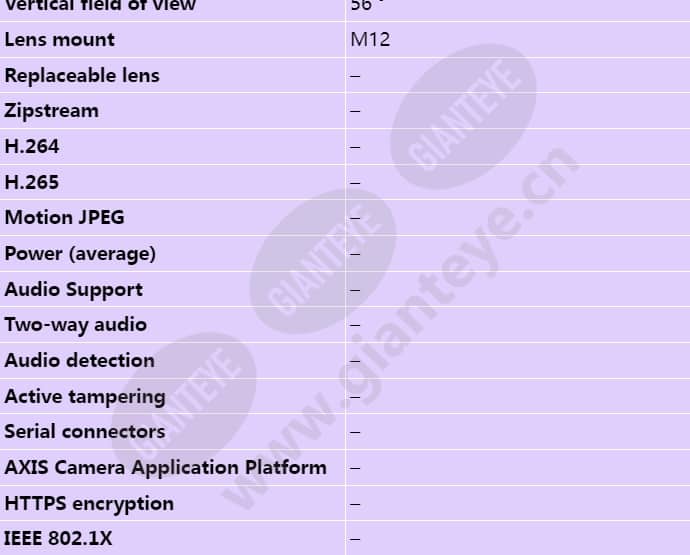

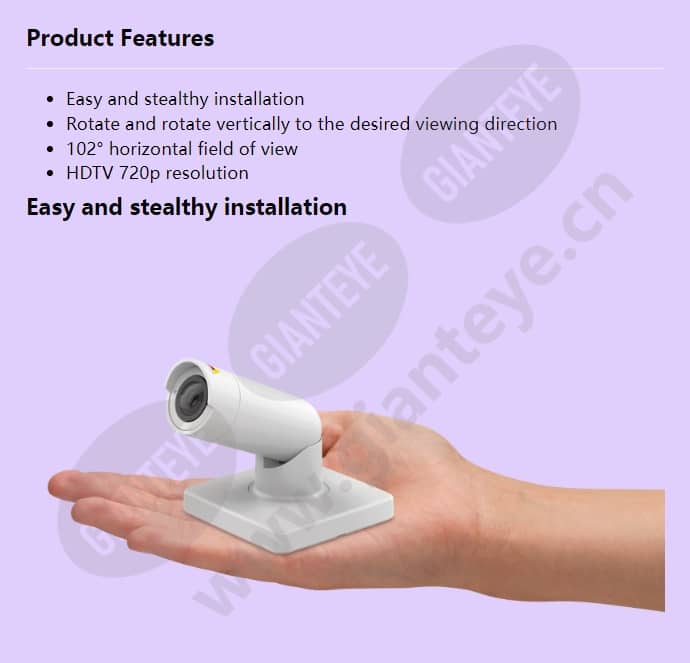

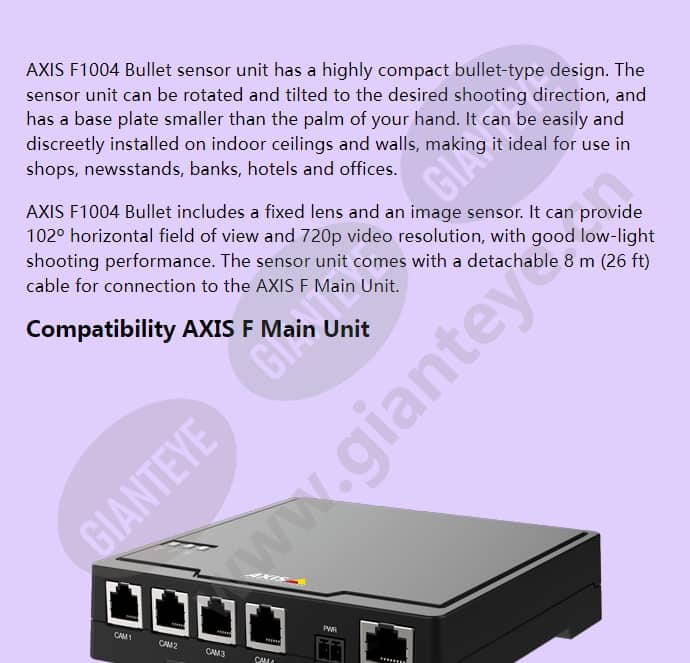

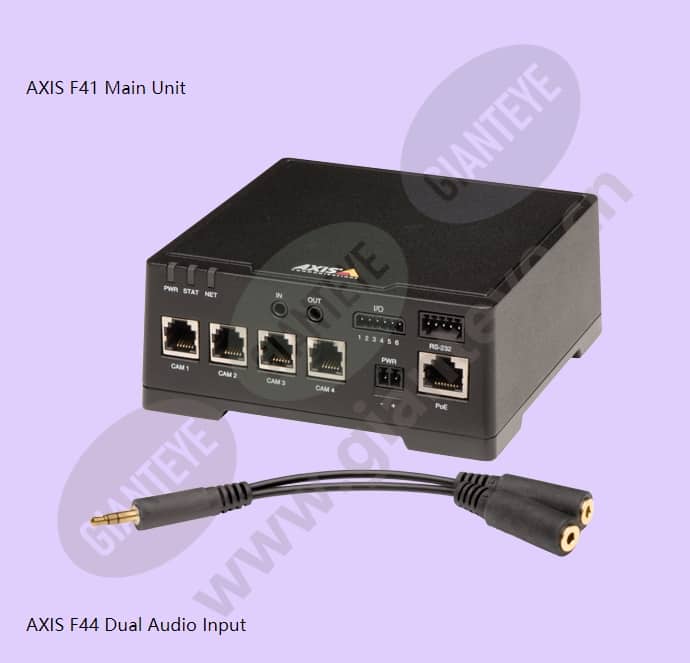

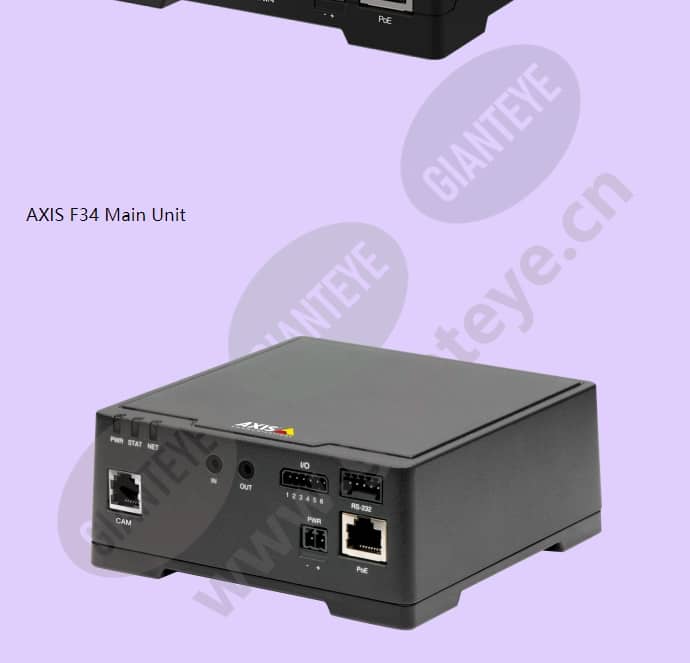

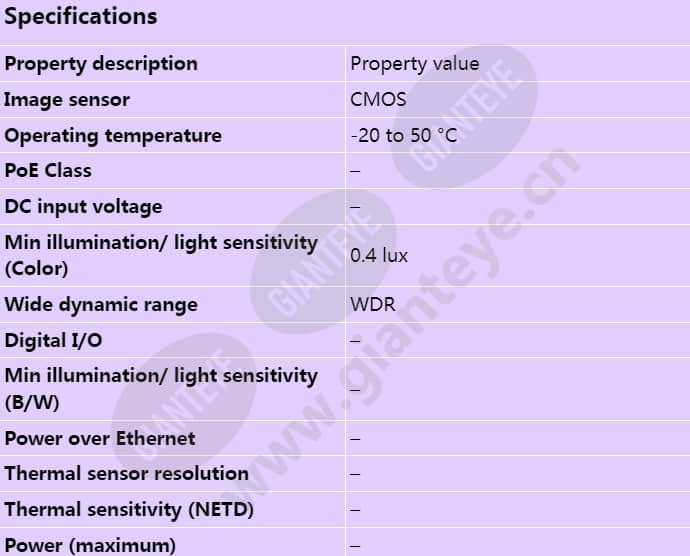

Easy and stealthy installation Rotate and rotate vertically to the desired viewing direction 102° horizontal field of view HDTV 720p resolution Easy and stealthy installation AXIS F1004 Bullet sensor unit has a highly compact bullet-type design. The sensor unit can be rotated and tilted to the desired shooting direction, and has a base plate smaller than the palm of your hand. It can be easily and discreetly installed on indoor ceilings and walls, making it ideal for use in shops, newsstands, banks, hotels and offices. AXIS F1004 Bullet includes a fixed lens and an image sensor. It can provide 102º horizontal field of view and 720p video resolution, with good low-light shooting performance. The sensor unit comes with a detachable 8 m (26 ft) cable for connection to the AXIS F Main Unit. Compatibility AXIS F Main Unit AXIS F34 Main Unit AXIS F41 Main Unit AXIS F44 Dual Audio Input Image sensor CMOS Wide dynamic range WDR Min illumination/ light sensitivity (Color) 0.4 lux Max video resolution 1280x720 Max frames per second 25/30 Focal length 2.1 mm Varifocal lens No Aperture 2.2 Horizontal field of view 102 ° Vertical field of view 56 ° Lens mount M12 Operating temperature -20 to 50 °C
