AXIS F1015 Sensor Unit 0677-001 0677-009 0678-001 0678-009

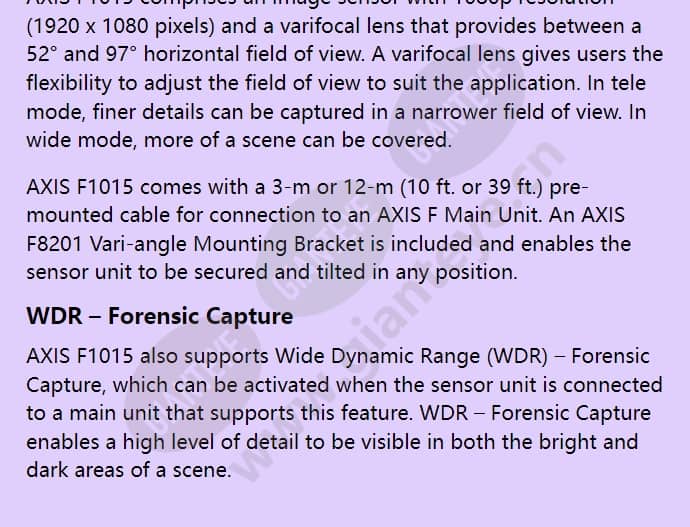

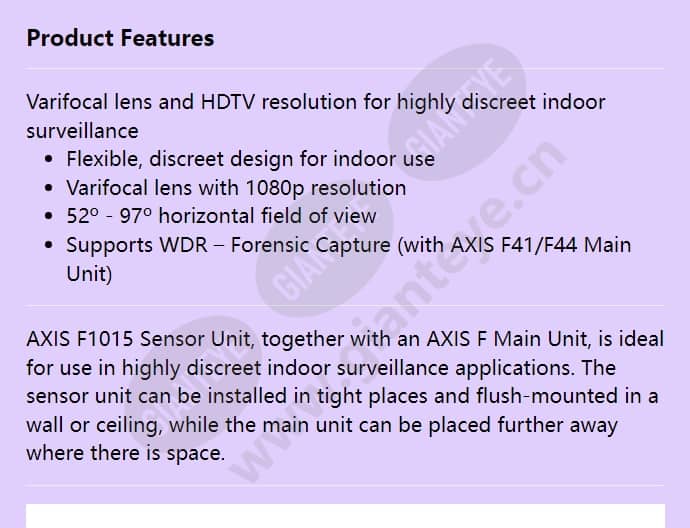

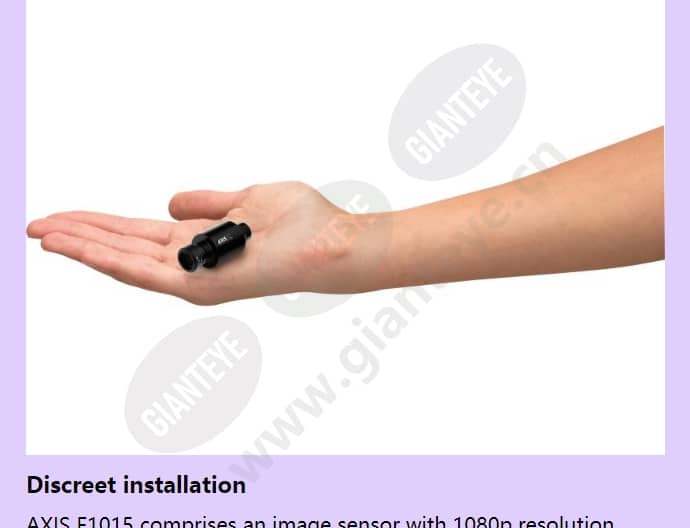

Varifocal lens and HDTV resolution for highly discreet indoor surveillance Flexible, discreet design for indoor use Varifocal lens with 1080p resolution 52º - 97º horizontal field of view Supports WDR – Forensic Capture (with AXIS F41/F44 Main Unit) AXIS F1015 Sensor Unit, together with an AXIS F Main Unit, is ideal for use in highly discreet indoor surveillance applications. The sensor unit can be installed in tight places and flush-mounted in a wall or ceiling, while the main unit can be placed further away where there is space. Discreet installation AXIS F1015 comprises an image sensor with 1080p resolution (1920 x 1080 pixels) and a varifocal lens that provides between a 52° and 97° horizontal field of view. A varifocal lens gives users the flexibility to adjust the field of view to suit the application. In tele mode, finer details can be captured in a narrower field of view. In wide mode, more of a scene can be covered. AXIS F1015 comes with a 3-m or 12-m (10 ft. or 39 ft.) pre-mounted cable for connection to an AXIS F Main Unit. An AXIS F8201 Vari-angle Mounting Bracket is included and enables the sensor unit to be secured and tilted in any position. WDR – Forensic Capture AXIS F1015 also supports Wide Dynamic Range (WDR) – Forensic Capture, which can be activated when the sensor unit is connected to a main unit that supports this feature. WDR – Forensic Capture enables a high level of detail to be visible in both the bright and dark areas of a scene. Image sensor CMOS Wide dynamic range Forensic Capture Min illumination/ light sensitivity (Color) 0.3 lux Max video resolution 1920x1200 Max frames per second 50/60 Focal length 2.8 - 6 mm Varifocal lens Yes Aperture 2.0 Horizontal field of view 97 - 52 ° Vertical field of view 53 - 30 ° Lens mount M12 Replaceable lens Yes Operating temperature -30 to 55 °C
